Plugable Thunderbolt™ and USB-C Dual Display Docking Station with 60W Host Charging

$259.00 USD

SKU: TBT3-UDC1
Amazon Rating : (105 Reviews)

Features

Universal Compatibility—Powered by the newest Intel Titan Ridge chipset. This Thunderbolt 3 dock allows for flexibility with both USB-C and Thunderbolt 3 hosts, perfect for office and home environments utilizing both Windows and macOS
Windows and Mac—Compatible with 2016+ MacBook Pro, iPad Pro or Windows systems with Thunderbolt 3 or USB Type-C such as the Surface Pro 7, Surface Laptop 3, Lenovo Yoga, HP Spectre, Dell XPS (Reduced capabilities for USB Type-C and Apple M1 Macs)
A Docking Powerhouse—Drive dual 4K 60Hz via DisplayPort or HDMI (2x DP to HDMI Active Adapter Included) displays via Thunderbolt 3, or for USB-C systems (MFDP) dual 1080p 60Hz or single 4K 30Hz display, add USB-C or USB 3.0 peripherals, gigabit Ethernet, and 3.5mm audio device, with up to 60W Power Delivery
Massive Connectivity—Clean up desk space with a single 0.8m Thunderbolt 3 cable from your laptop expanding to 10 ports. 2x DisplayPort, 2x USB-C (10Gbps, Data Only), 1x USB (10Gbps), 2x USB 3.0 (5Gbps), Gigabit Ethernet, Headset Audio Jack
2 Year Warranty—We love our Plugable products, and hope you will too. All of our products are backed with a 2-year limited parts and labor warranty as well as Seattle-based email support

This product is discontinued.

Product Information Menu

Plugable’s Thunderbolt 3 and USB-C Dual Display Docking Station (TBT3-UDC1)

Image of the Plugable TBT3-UDC1 connecting to two monitors and a laptop

Thunderbolt 3 and USB-C Docking Station with 100W charging

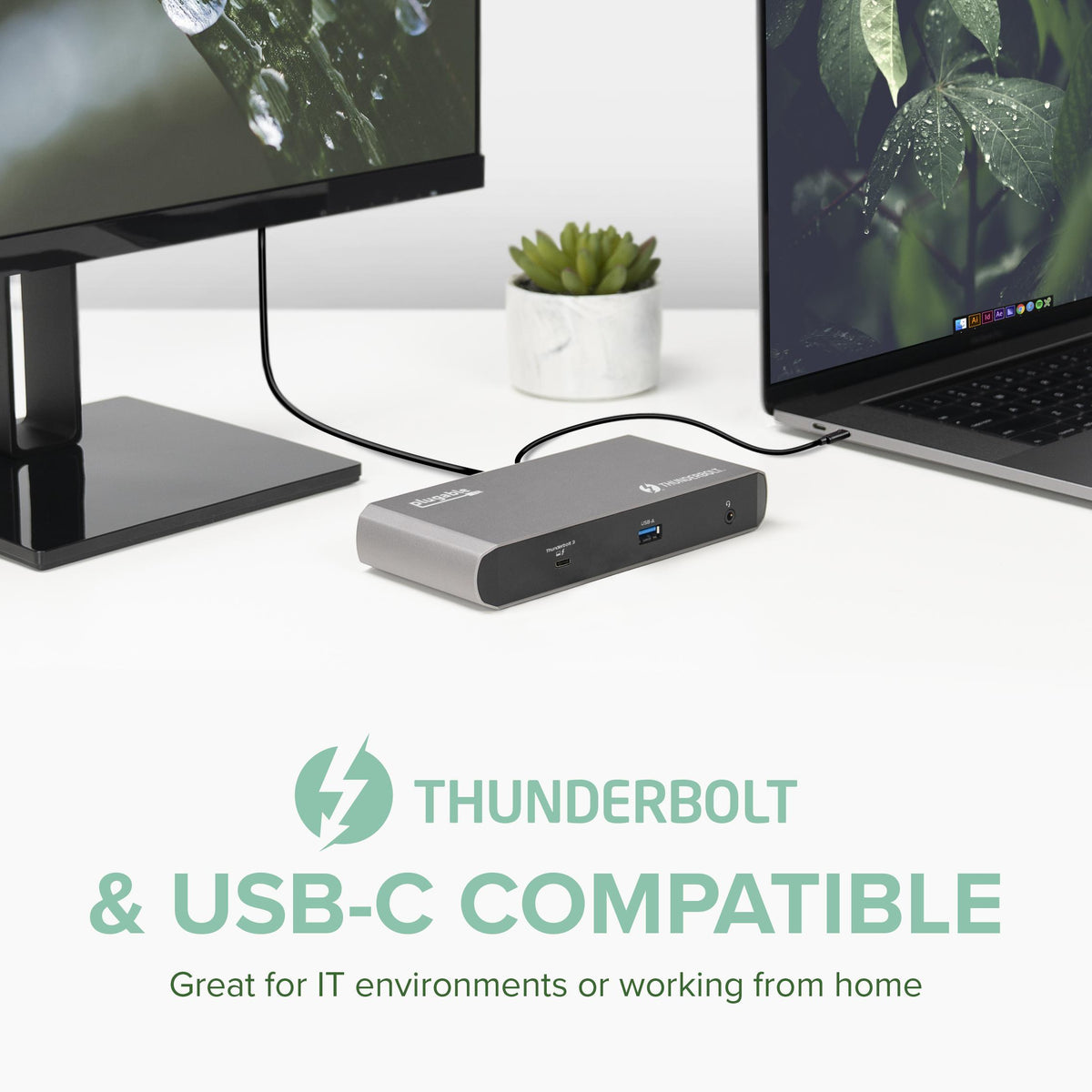

Introducing Plugable’s Thunderbolt 3 and USB-C Dual Display Docking Station (TBT3-UDC1). With the latest Thunderbolt chipset, this versatile dock offers a high-performance connectivity expansion experience with extreme flexibility, being compatible with both Thunderbolt 3 and USB-C* compatible host systems!

With a single Thunderbolt 3 cable supporting up to 40Gbps speeds, enjoy the bandwidth to drive two 4K monitors at 60Hz with all your USB or USB-C peripherals, while also providing up to 60W of charging. This dock is a flexible powerhouse, perfect for environments that have a mix of Thunderbolt 3 and USB-C* host systems.

*USB-C hosts will operate at reduced functionality.

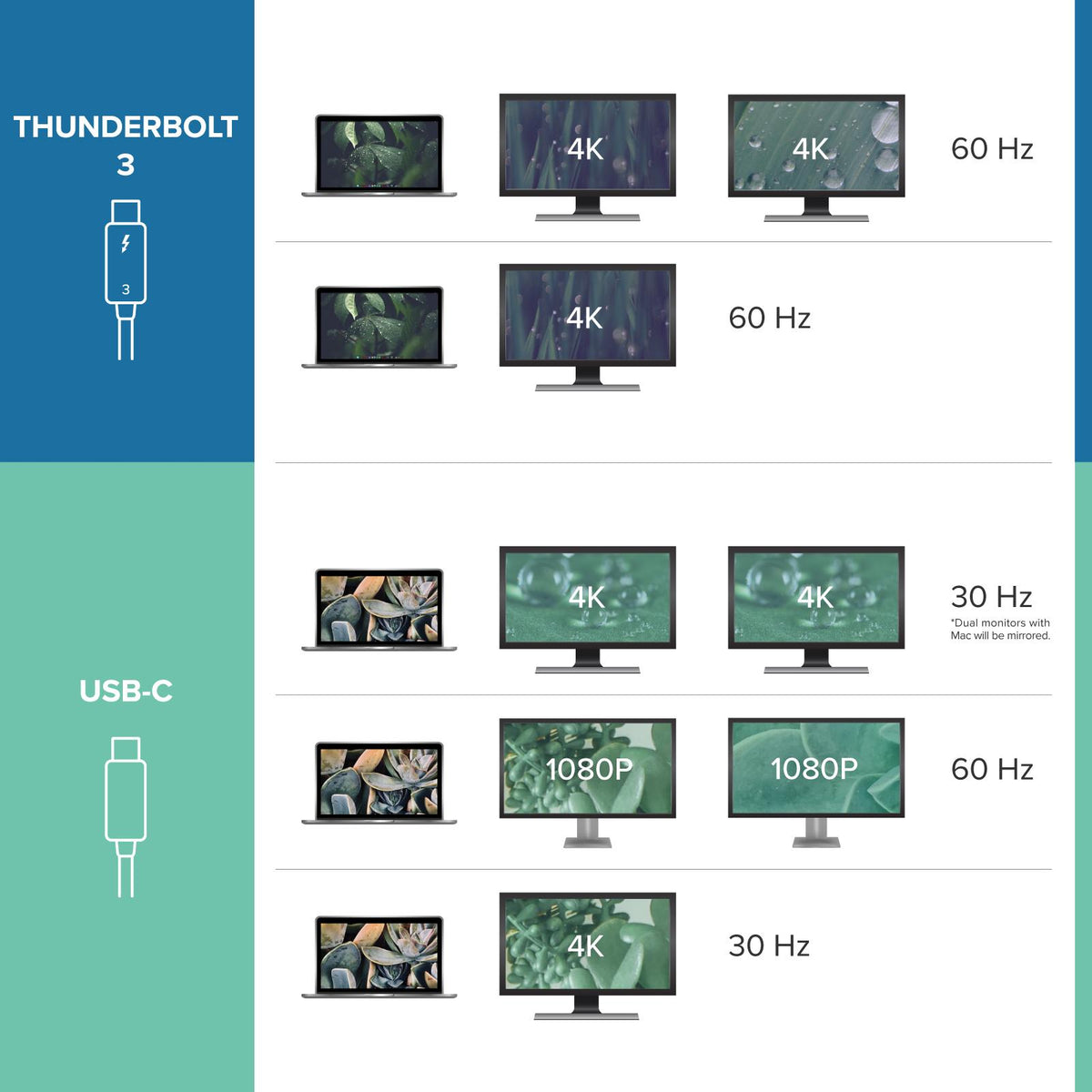

Comparison of Thunderbolt and USB-C capabilities with the TBT3-UDC1

When connected to Thunderbolt 3 Windows or Mac systems:

Drive up to two 4096x2160 @ 60Hz displays via DisplayPort or HDMI.
Charge with up to 60W of Power Delivery.
Connect bandwidth-heavy peripherals to one front USB (10 Gbps) port and two rear USB-C (10Gbps) ports.
Connect USB peripherals to two rear USB 3.0 (5Gbps) ports.

When connected to a compatible USB-C only Windows or Mac system:

Supported DisplayPort Modes:
- Multi-Stream Transport (MST), Alt Mode
Windows:
- Drive two 1920x1080 @ 60Hz displays via DisplayPort or HDMI
- Or drive one 4096x2160 @ 30Hz display via DisplayPort
Mac:
- Intel-based Macs: Drive up to two 4096 x 2160 @ 30Hz mirrored displays via DisplayPort or HDMI
- Apple M1 Macs: Drive a single display at up to 4K via DisplayPort or HDMI
  - Two displays are not supported due to M1 limitations. For dock options with support for 2+ monitors, please refer to UD-3900PDZ
Charge with up to 60W of Power Delivery
Connect USB peripherals to three USB 3.0 (5Gbps) ports, and two USB-C (5Gbps) ports

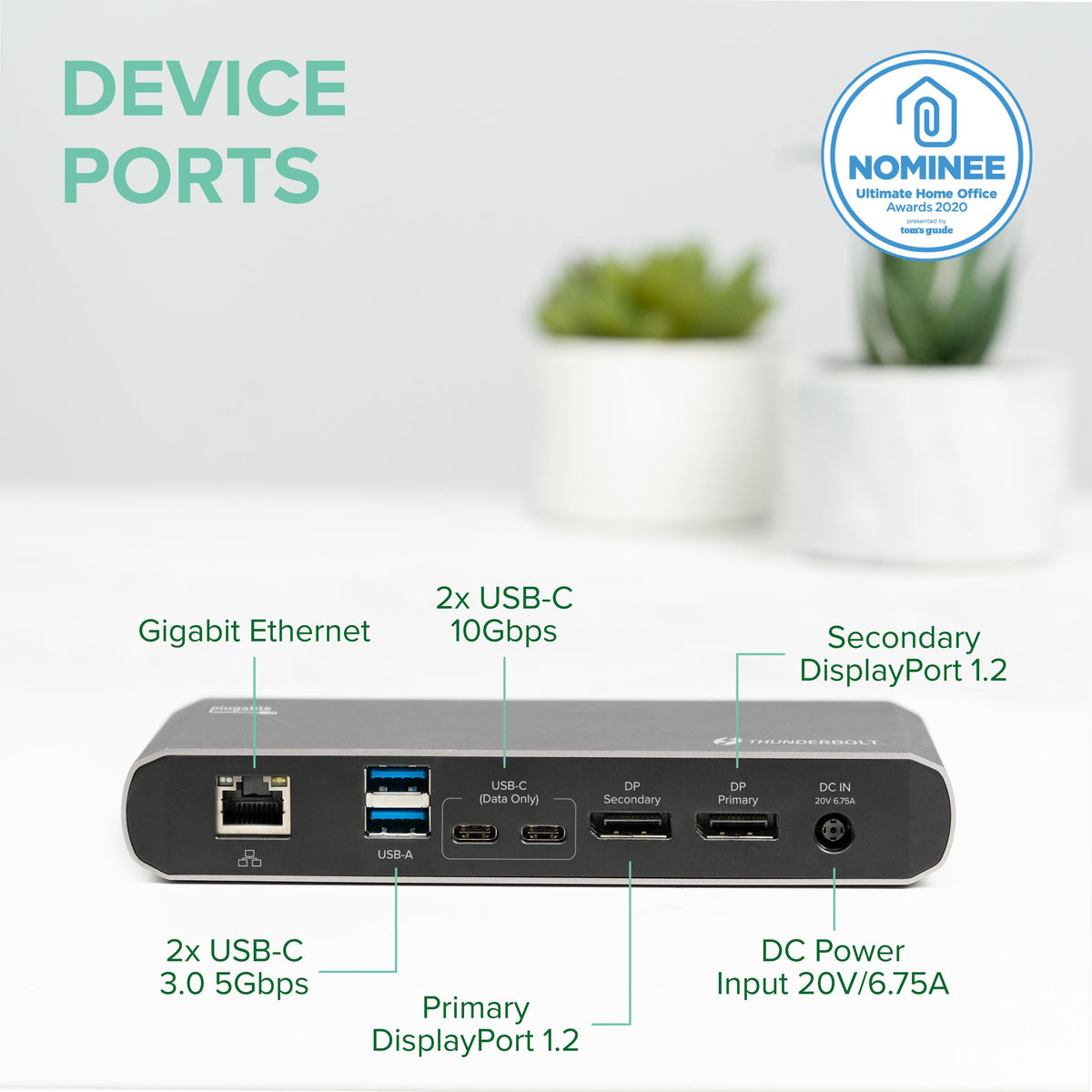

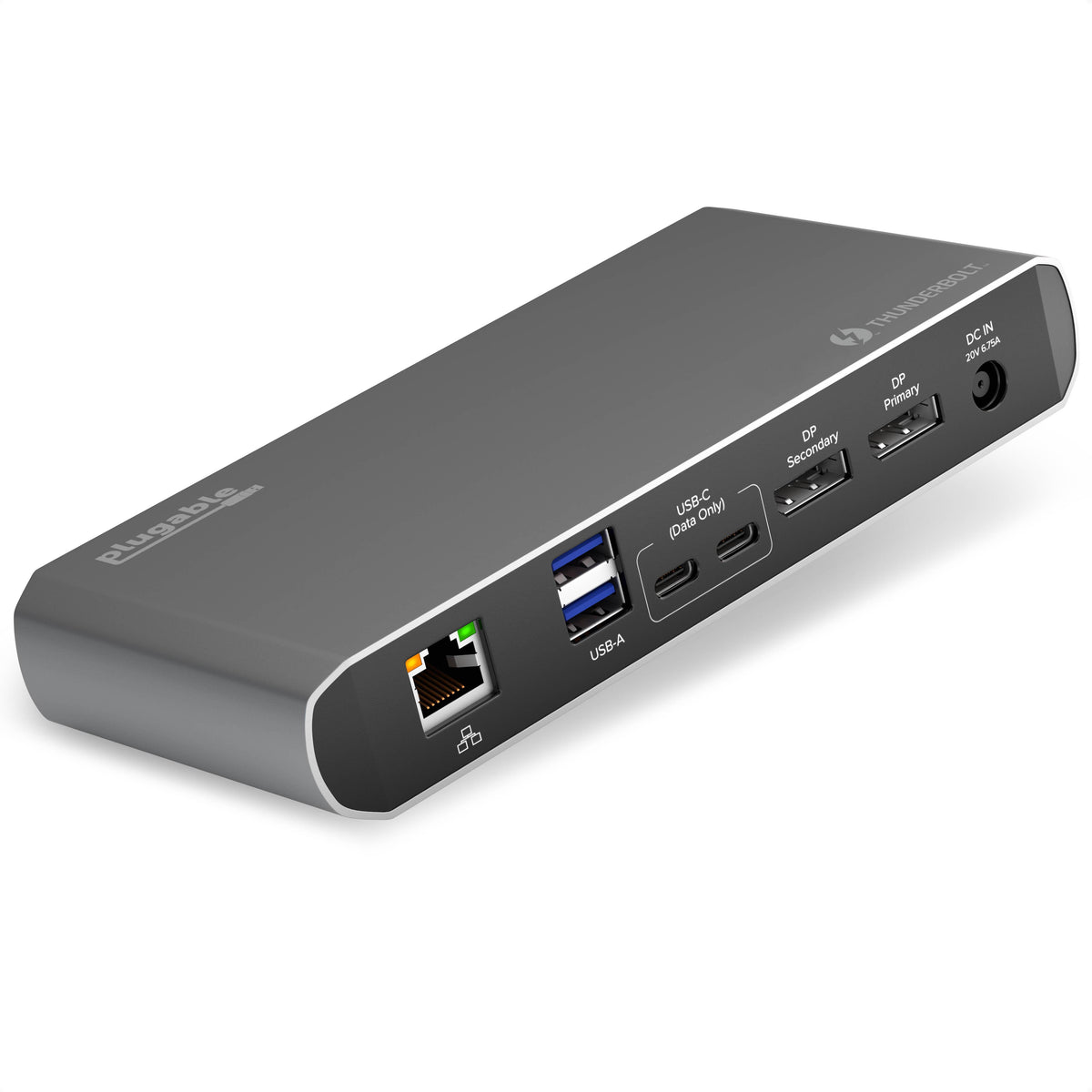

Image of the TBT3-UDC1 and it's device ports

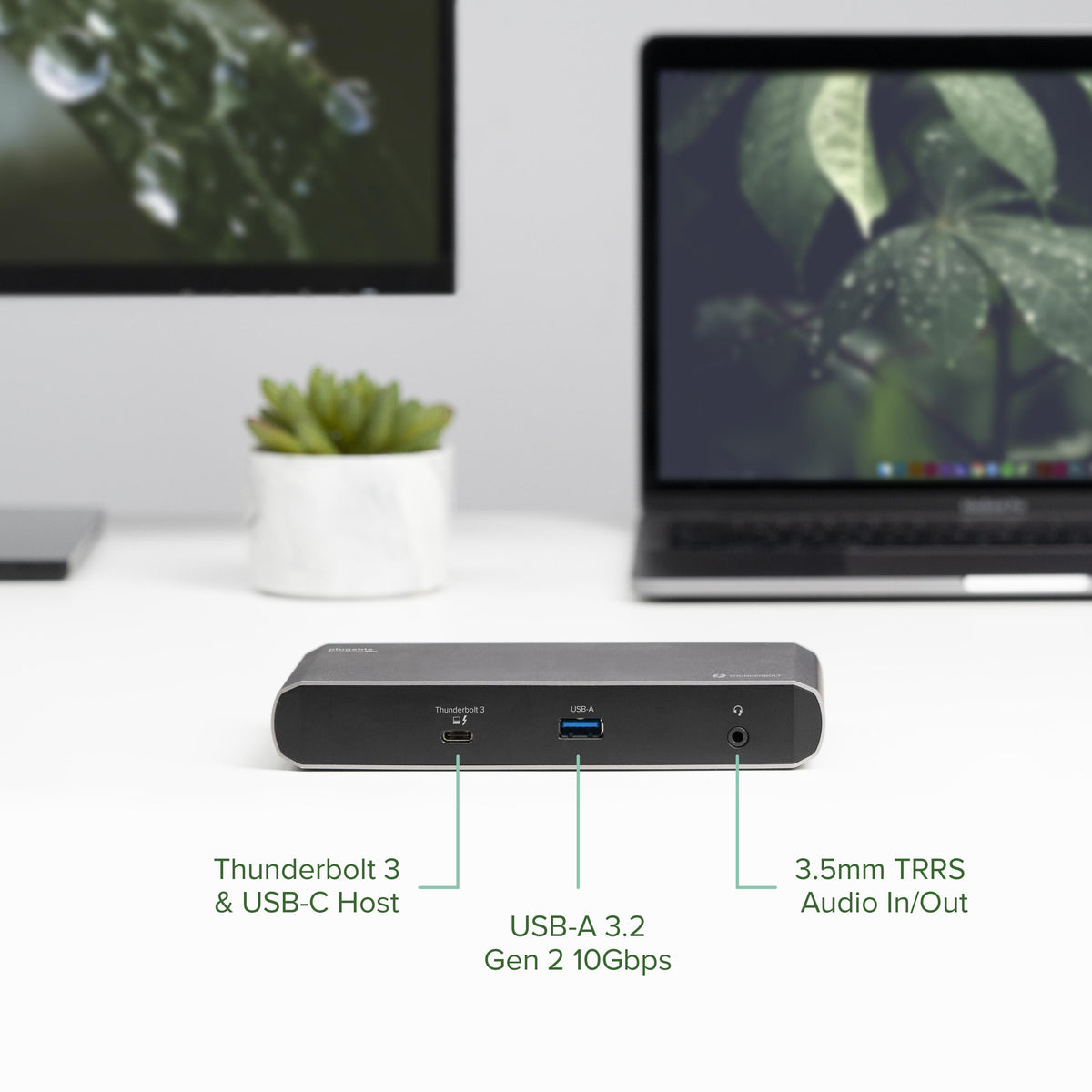

Flexible USB Peripheral Connectivity

With a mix of USB 3.0 ports and USB-C port supporting speeds up to 10Gbps, you’ll be able to connect your phone or USB flash drive to the easily accessible front USB port, then connect other USB peripherals such as a keyboard, mouse, or USB-C storage devices to the back of the dock.

* USB-C ports on the back of the dock support data transfer only (no video) *

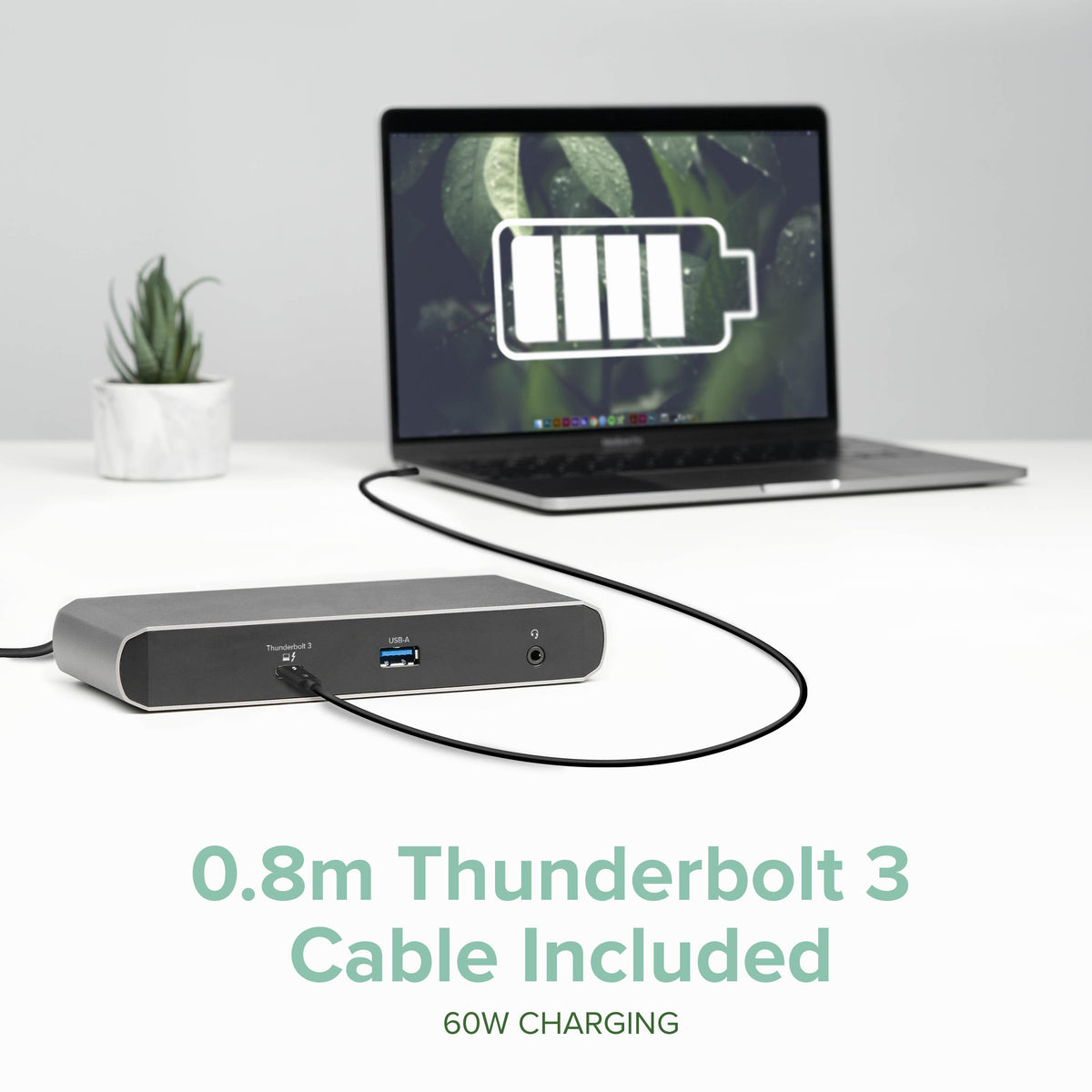

60W power delivery charging capabilities

60W of Power to Charge

Use a single Thunderbolt 3 cable to dock and charge your device, and keep your laptop powered up while you’re working, so you can say goodbye to your other power supply.

Requirements and Compatibility

Requirements:

PC—Windows 10 or later, Thunderbolt 3 port
Mac—macOS High Sierra 10.13 or later, Thunderbolt 3 port

Limited compatibility:

PC—Windows 10 or later, USB-C port
Mac—macOS Sierra 10.12 or later, USB-C port

Important notes:

Dock capabilities will limited when connected to a USB-C only host versus a Thunderbolt 3 host
Windows systems require updated NVM firmware, system BIOS, and Thunderbolt/GPU drivers from the system manufacturer (Apple systems provide this automatically).

Laptop Compatibility

When connected to Thunderbolt 3 Windows or Intel-based Mac systems:

Drive up to two 4096x2160 @ 60Hz displays via a combination of HDMI and DisplayPort (or second HDMI using included DisplayPort to HDMI adapter)
Connect bandwidth-heavy peripherals to rear USB (10Gbps) port and two rear USB-C (10Gbps) ports
Connect USB peripherals to two front USB 3.0 (5Gbps) ports

When connected to a compatible USB-C only Windows (MFDP) or Mac or M1-based Mac system:

Windows:

Drive up to two extended displays up to 1920x1080 @ 60Hz displays via DisplayPort or HDMI
Drive a single display at up to 4096x2160 @ 30Hz via DisplayPort or HDMI

Mac:

Intel-based Macs: Drive up to two 4096 x 2160 @ 30Hz mirrored displays via DisplayPort or HDMI
Apple M1 Macs: Drive a single display at up to 4K via DisplayPort or HDMI

Two displays are not supported due to M1 limitations. For dock options with support for 2+ monitors, please refer to UD-3900PDZ

Connect USB peripherals to three USB 3.0 (5Gbps) ports, and two USB-C (5Gbps) ports


	TBT3-UDC3 $159.95 USD	TBT3-UDC1 $259.00 USD	TBT3-UDZ $239.95 USD	TBT3-UD1-85W $269.00 USD	TBT3-UDV $259.00 USD
Laptop compatibility	Thunderbolt 3 and USB-C	Thunderbolt 3 and USB-C	Thunderbolt 3 and USB-C	Thunderbolt	Thunderbolt
Power Delivery to host	100W (96W Certified)	60W	100W (96W Certified)	85W	60W
Number of displays supported	2	2	2	2x (with purchase of a seperate adapter)	2x (with purchase of a seperate adapter)
Video output types	1x HDMI 1x DisplayPort (or second HDMI with included adapter)	2x DisplayPort	2x DisplayPort or HDMI	1x DisplayPort++ (or HDMI with included passive adapter)	1x DisplayPort (or HDMI with included active adapter)
Downstream Thunderbolt 3 port	0	0	0	1	1
USB-C (data only) ports	2	2	1	0	0
USB 3.0 ports	3	3	6	2	5
SD/Micro SD
Orientation	Horizontal	Horizontal	Vertical or Horizontal	Horizontal	Vertical or Horizontal
Included Thunderbolt 3 cable	2.6 ft/80cm 40Gbps	2.6 ft/80cm 40Gbps	2.6 ft/80cm 40Gbps	2.6 ft/80cm 40Gbps	1.6 ft/50cm 40Gbps

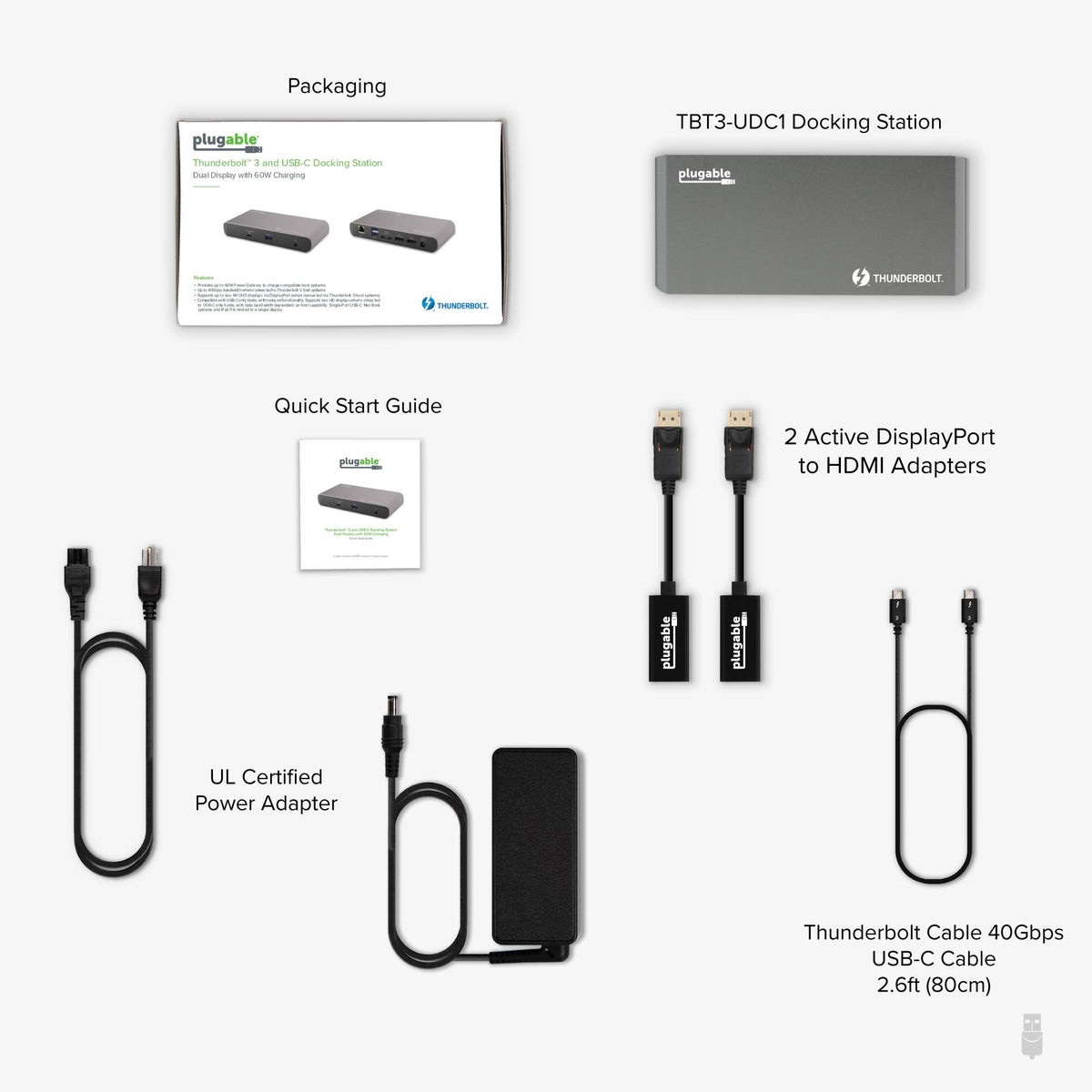

In The Box

Item and Quantity	Item Notes
1x Plugable TBT3-UDC1 Thunderbolt 3 and USB-C Dual Display Dock with 60W Host Charging
1x Quick Start Guide
1x Power supply
2x Active DisplayPort to HDMI Adapters
1x Power cable
1x 0.8m 40 Gbps Thunderbolt 3 Cable

Included Cables

Port Type (Side 1)	Cable Specification	Port Type (Side 2)	Cable Length	External Power for Cable
Male Thunderbolt™ 3	Thunderbolt™ 3 (40Gbps)	Thunderbolt™ 3	0.8m/2.62ft

Video

Port	Placement	Specification	Max Resolution and Refresh Rate	HDCP	Chipset
2x DisplayPort (Output)	Rear	DisplayPort 1.2	4096x2160 @ 60Hz 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 4096x2160 @ 60Hz	Supported

Video Output Modes

Host Stream Specification	Host Port Type	Number of Displays Used	Max Resolution at Display Count
DisplayPort 1.2	Thunderbolt™ 3 or USB-C	2	3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 4096x2160 @ 60Hz

Audio

Port	Placement	Connection	Max Bit Depth and Sample Rate	Signal Output	Channels	Chipset
DisplayPort Output	Rear	DisplayPort	Host Dependent	Digital	Host Dependent
Headset Jack Bi-Directional	Front	3.5mm (TRRS)	16-bit 48KHz	Digital

Power

Port	Placement	Power Host / Device	Connection Type	Notes	Voltage	Amperage	Wattage
Power Supply	Rear	Device	Region-specific Power Adapter	UL 60950-1 Certified	20.0V	9.0A	180.0W
Thunderbolt™ 3 to Host	Front	Host	USB-C Power Delivery		20.0V	3.0A	60.0W

USB To Devices

Port	Placement	Version and Link Rate	Features	Voltage	Amperage	Wattage
1x USB-A	Front	USB 3.2 Gen 2 (10Gbps)	Battery Charging 1.2	5V	1500mA	7.5W
2x USB-A	Rear	USB 3.0 (5Gbps)		5V	900mA	4.5W
2x USB-C	Rear	USB 3.2 Gen 2 (10Gbps)		5V	1500mA	7.5W

Connection To Host

Port	Placement	Version and Link Rate	Features
1x Thunderbolt™ 3 or USB-C	Front	Thunderbolt™ 3 (40Gbps)	4x PCIe 3.0 Lanes or USB Power Delivery or Alternate Mode Video

Wired Network

Port	Placement	Version and Link Rate	Features	Chipset
Gigabit Ethernet	Rear	1000BASE-T	Wake-on-LAN (WoL) or Energy-Efficient Ethernet (EEE) or 9K Jumbo Frames	RTL8153 Realtek

Physical Stats

Item	Size (H x W x D) or Length	Weight	SKU or Part Number
	TBT3-UDC1

Get Started

Important Note for Windows System: Thunderbolt 3 includes advanced security features to help keep your system safe. On Windows systems, Thunderbolt devices must be authenticated ("approved") when they are attached to a Thunderbolt 3 host system for the first time. (This security is already built-in to MacOS without the need for these steps.)

Connect power cable to Thunderbolt 3 dock.
Connect the included Thunderbolt 3 cable to the dock port with the computer icon, and then connect the other end to the Thunderbolt 3/USB-C port of your host system.
(Windows only) Approve the new device with the Thunderbolt utility on your computer.

Questions? We're here to help! Please reach out to us at support@plugable.com
