Plugable Single Display Thunderbolt™ 3 Docking Station (No Host Charging)
$169.00 USD
SKU: TBT3-UD1-83Amazon Rating : (58 Reviews)
Features
- Features—Enables an additional 4K display, Gigabit Ethernet, audio input and output, and USB expansion with 1x Thunderbolt 3 USB-C (10Gbps) port, 1x USB-C (5Gbps) and 2x USB 3.0 (5Gbps) ports
- Video Capabilities—Provides DisplayPort (DP++) output for DisplayPort monitors. Passive DisplayPort to HDMI adapter included to convert from DisplayPort to HDMI. HDMI adapter supports up to 4K 30Hz
- Power—Dock does not charge the host laptop. The laptop’s original power adapter must be connected to the laptop in order to charge while docked
- Notes—Some 4K DisplayPort displays are incompatible, and not all Thunderbolt 3 systems will support this docking station. See important additional compatibility details below
- 2-Year Coverage, Lifetime Support—Every Plugable product, including this thunderbolt 3 docking station, is covered against defects for 2 years and comes with lifetime support. If you ever have questions, contact our North American-based team - even before purchase
Plugable Thunderbolt 3 Single Display Non-Charging Dock for Apple and Dell Thunderbolt 3 Systems

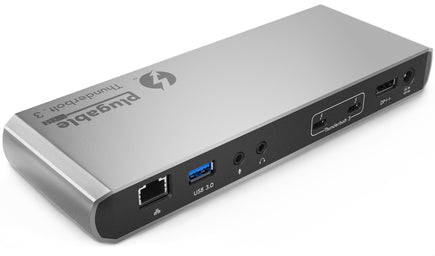

Plugable's TBT3-UD1-83 Thunderbolt 3 Single Display Docking Station offers high-performance expansion of your Thunderbolt 3-enabled Mac or compatible Windows Thunderbolt 3 system. Connect a single display up to 4K 60Hz (4096x2160 @ 60Hz) via the integrated DisplayPort++ port. Thunderbolt 3's massive 40Gbps bandwidth enables you to run your high resolution display connected through the dock at the full native performance of your system's graphics processor while also enabling access to your wired network and existing USB peripherals.
Supports connection to wired Gigabit Ethernet networks using the integrated Intel i210 Gigabit network adapter. Provides 3.5mm analog audio input and output jacks for connecting stereo headphones and a microphone. Provides two extra USB 3.0 (5Gbps) ports and one USB-C (5Gbps) port for device connectivity (Front USB-C port does not support Thunderbolt devices or VESA DisplayPort Alternate Mode video output)
Compatible with Apple Thunderbolt 3 systems and certain Windows systems which have Thunderbolt 3. Some Windows Thunderbolt 3 systems may work, but not support all of the functionality offered by this dock.
- Dock does not charge the host system; you will still need to connect the power adapter from your system manufacturer
- Ability to add a second display depends on design decisions made by your system manufacturer and requires additional hardware, sold separately
- Docking station will not function if attached to a non-Thunderbolt 3 capable USB-C port
 |
 |
 |
|
|---|---|---|---|
Designed for both Thunderbolt 3 and USB-C |
No |
No |
Yes |
Power Delivery to host |
No charging |
60W |
60W |
Number of displays supported |
2 (with separate adapter) |
2 (with separate aadpater) |
2 |
Video output types |
1x DisplayPort++ (or HDMI with included adapter) |
1x DisplayPort, 1x Thunderbolt 3 output (with separate adapter) |
2x DisplayPort |
Includes DisplayPort to HDMI adapter? |
Yes |
Yes |
No |
DisplayPort adapters support (e.g., DP to HDMI adapter) |
Supports passive or active adapters |
Only supports ACTIVE adapters |
Only supports ACTIVE adapters |
Orientation |
Horizontal |
Vertical or Horizontal |
Horizontal |
System Requirements and Compatibility Information
Thunderbolt 3 is a powerful technology, and system manufacturers have substantial discretion in how they implement its various technical elements and features. As a result, compatibility information is complex, and some currently available Thunderbolt 3 systems do not support all the features offered by this Thunderbolt 3 docking station.
- System manufacturer must have physically routed two DisplayPort lines to the Thunderbolt 3 port. Currently all Thunderbolt 3 systems from Apple and Dell meet this requirement
- Thunderbolt 3 DisplayPort implementation from HP, Lenovo, MSI, Gigabyte, Acer, Razer, Clevo, Intel, etc varies among their product lines
- Requires updated system UEFI BIOS, Thunderbolt 3 drivers, and graphics (GPU) drivers from system manufacturer
If you have a Thunderbolt 3 host system which supports two video outputs, you may need an additional adapter to connect a second display. We offer the following compatible adapters:
You can also connect other Thunderbolt 3 or USB-C devices to the dock's second Thunderbolt 3 port, as needed.
In the Box
Thunderbolt 3 TBT3-UD1-83 docking station, 0.5 meter (20 inches) Thunderbolt 40Gbps cable, DisplayPort to HDMI passive adapter, quick installation guide and a 12V/6A (72W) power adapter (US AC Wall Outlet Plug, 100-240V 50/60Hz)
