Plugable 4-in-1 Thunderbolt 4 / USB4 ハブ
$129.95 USD
SKU: TBT4-HUB3CAmazon Rating : (152 Reviews)
機能
- Thunderbolt 認証 - 当 Plugable Thunderbolt 4 / USB4 ハブは、Thunderbolt 4 認証を受けています。Goshen Ridge チップセットを搭載しており、USB-C、USB4、Thunderbolt 3 および 4 の機能を提供します。
- Thunderbolt 4 / USB4 対応ポート - このハブのポートはどれも Thunderbolt 4 / USB4 対応しており、40Gbps データ転送で 2 台までの 4K@60Hz モニター接続が可能です。また接続されたデバイスに対して 15W までの電力を供給できます。給電レートは当ハブが接続されたシステムとデバイスの技術仕様に従って自動的に調整されます。USBC-HDMI変換アダプタが 1 つ同梱されています。
- 互換性 - Windows 10 以上、macOS 11.x 以上の、Thunderbolt 4 および USB4 対応システムで使用できます。このようなシステムでは、4K@60Hz 解像度のモニターを 2 台または、6K@30Hz、8K@30Hz 解像度のモニターを 1 台接続可能です。Thunderbolt 4 / USB4 非対応の USB-C システムでも後方互換性により使用できますが、機能が大幅に制限されます。Thunderbolt 3 対応の Windows システムので使用は推奨されません。
- 拡張性 - Thunderbolt 4、Thunderbolt 3、USB4、USB-C 対応の様々なデバイスを接続することができます。また、PC には接続せずに、USB-C / Thunderbolt 周辺機器を充電する独立した USB 充電器として使用することもできます。
- 2-Year Coverage, Lifetime Support—Every Plugable product, including this Thunderbolt 4 hub, is covered against defects for 2 years and comes with lifetime support. If you ever have questions, contact our North American-based team - even before purchase
[米国内のみ] 当サイトから注文の場合送料無料
Plugable Thunderbolt 4 / USB4 ハブ 60W ホスト充電対応、パワーユーザー用
Thunderbolt 4 / USB4 対応
Plugable 4-IN-1 Thunderbolt 4 / USB4 ハブは、他製品では得られない体験を提供します。USB-C ポートに接続するタイプのデバイス(Thunderbolt 4、USB4、Thunderbolt 3、普通の USB-C 機器)は、ホスト PC システムがどのプロトコルをサポートしているかによって、自動的にその能力を最大限に発揮できます。Windows および Macbook Pro 用のポート追加用ハブに必要な性能を提供します。「Plugable USB-C HDMI 変換アダプタ(DP 代替モード対等)」が 1 つと Thunderbolt 4(80cm) ケーブルが同梱されており、システム使用環境をよりシンプルかつ柔軟にセットアップできます。

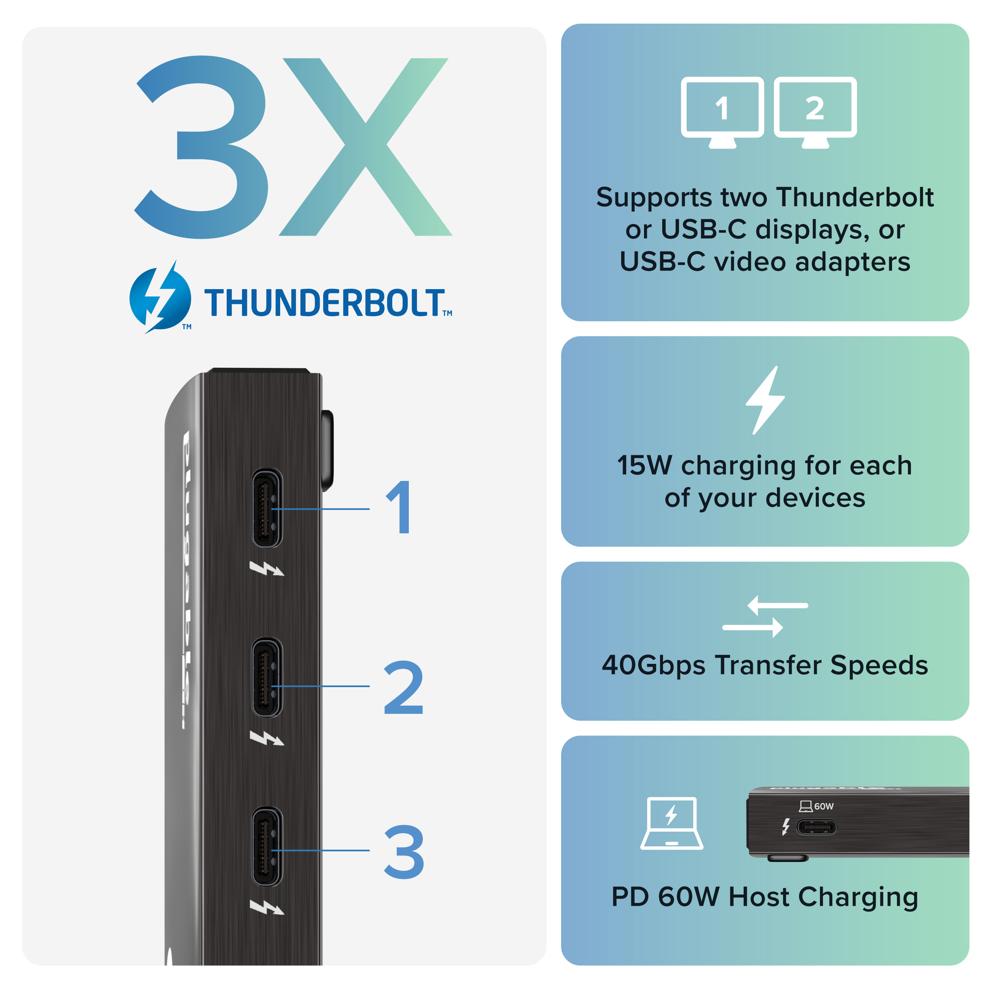

パフォーマンスと充電
当 ハブは、最大 40Gbps のデータ転送速度、バッテリー充電に必要な 60W のホスト充電能力、そして Plugable 社の品質基準に準拠して構築・テストされた信頼性を備えています。 また、データ転送が不要な際には、スタンドアローンの充電器としても機能します。
自動的な性能最適化
高性能なノート PC を使用しているのに、性能の低い USB-C ドックで妥協する必要はありません。この TBT4-HUB3C ハブは Goshen Ridge チップの柔軟性を活かして、それぞれの Thunderbolt ポートがすぐに、そして自動的にコンピュータの一部として機能します。M1 Mac システムで快適に使用できます。4Kディスプレイなどの USB-C または Thunderbolt 3/4 対応デバイスと、数ギガバイトの転送速度を誇る 2 台のThunderbolt 3 SSD 外部ドライブを、1 本のケーブルを接続するだけで使用できます。もしこれまでの PC を新しい Thunderbolt 4 ポートを搭載した高性能 PC に取り替えた場合も、同じ 1 本のケーブルを使って、簡単に周辺機器を接続できます。また、SSD の 1 台を 2 台目の 外部 4K モニターに交換することもできます。

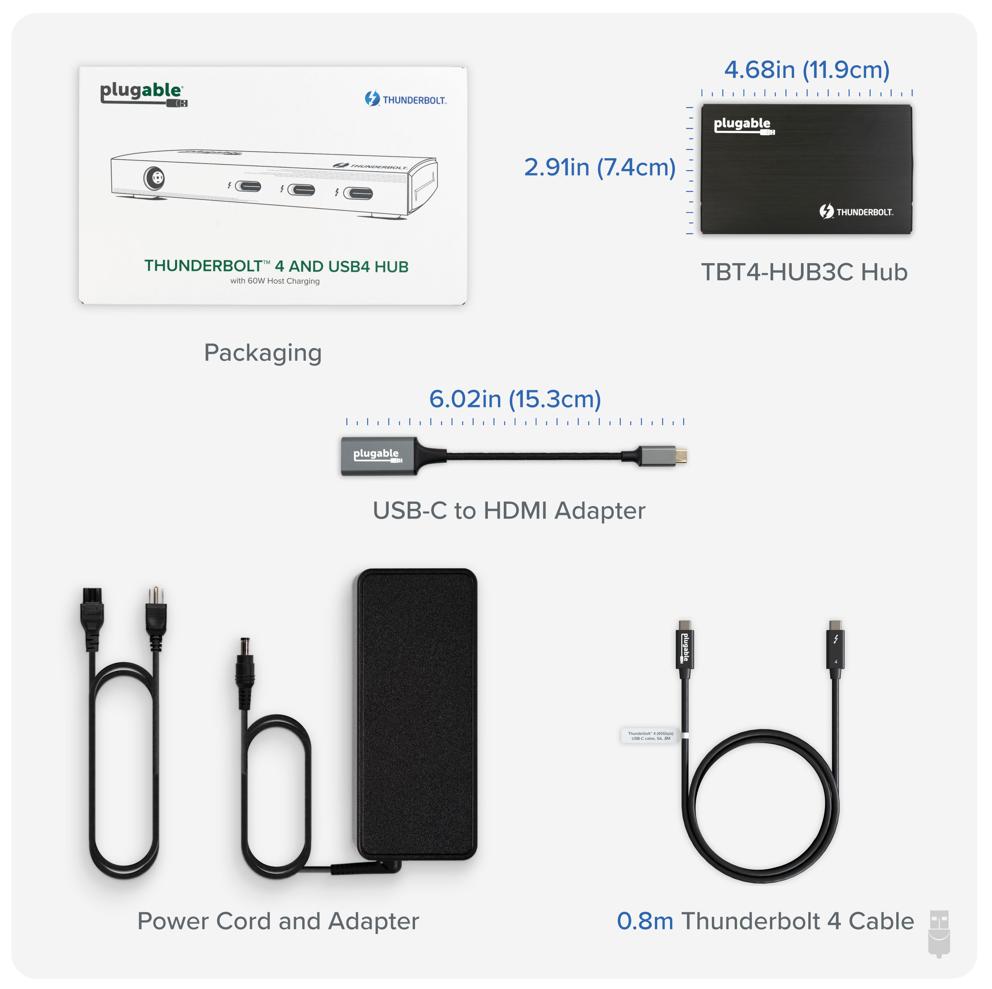

パッケージ内容
パッケージ内容と数量 | 注記 |
---|---|
1x Plugable Thunderbolt 4 / USB4 ハブ(TBT4-HUB3C) | |
1xThunderbolt 4 認証済み USB-C ケーブル(80cm) | |
1x 110W 電源アダプタ | |
1x 電源ケーブル | |
1x USBC-HDMI グラフィック変換アダプター | |
1x クイックスタートガイド |
同梱ケーブル
ポートタイプ(側面 1 ) | ケーブル仕様 | ポートタイプ(側面 2 ) | ケーブル長 | ケーブル用外部電源 |
---|---|---|---|---|
Thunderbolt™ 4(オス) | Thunderbolt™ 4(40Gbps) | Thunderbolt™ 4 | 約 80 cm | いいえ |
電源
ポート | 場所 | 電源 ホスト/デバイス | 接続タイプ | 備考 | 電圧 | アンペア | ワット数 |
---|---|---|---|---|---|---|---|
電源 | 背面 | 周辺機器 | 電源アダプタ | UL 60950-1 認証 | 20.0V | 5.5A | 110.0W |
デバイス接続用 USB ポート
ポート | 場所 | バージョンとリンクレート | 機能 | 電圧 | アンペア | ワット数 |
---|---|---|---|---|---|---|
3x Thunderbolt™ 4(Thunderbolt™ 3、USB-C としても機能) | 背面 | Thunderbolt™ 4(40Gbps) | 5V | 3A | 15W |
ホストへの接続
ポート | 場所 | バージョンとリンクレート | 機能 |
---|---|---|---|
1x Thunderbolt 4(Thunderbolt 3、USB-C も可) | 前面 | Thunderbolt™ 4(40Gbps) | USB PD 充電 |
物理仕様
項目 | サイズ(高さ×幅×奥行き)または長さ | 重量 | 製品番号 |
---|---|---|---|
Thunderbolt 4 3 ポートハブ | 1.8 x 11.9 x 7.4 cm |
201 g |
TBT4-HUB3C |
LED
LED 番号 | 形状 | 色 | ステータス | 定義 | 備考 |
---|---|---|---|---|---|
1 | 丸 | White | 点灯 | 電源オン | |
1 | 丸 | 緑 | 点灯 | ホスト接続中 |
M1 Mac システム を含む Thunderbolt および USB4 対応 Mac、Intel M1 iPad(Thunderbolt 対応モデル)、Evoプラットフォームをベースとしたものを含む、Thunderbolt 4 対応 Windows PC と互換性があります。ただし M1 Mac では外部モニタ接続は 1 台までという制限があります。USB 3.2までに対応した USB-C ポートに接続した場合は機能が制限されます。 Windows システムに搭載された Thunderbolt 3 ポートへ接続しての使用はお勧めしません。
Connecting everything together
1. Securely connect the power cable to the power adapter
2. Securely connect the power cable to a known-working power outlet.
3. Once the power cable has been connected to the power adapter, connect the power adapter’s barrel connector to the circular power input port on the back of the hub.
When the hub is powered on, you will see a small solid white power indicator light on the front of the hub, towards the right-hand side.
4. Connect one end of the included 0.8 meter long 40Gbps Thunderbolt 4 cable to the single Thunderbolt 4 port located on the front of the hub.
This port has a Thunderbolt lightning icon to the left of it, and a small laptop icon above it.
*** It is important that the Thunderbolt 4 cable is connected to the Thunderbolt 4 port on the front of the hub. The hub will not work if the cable is connected to a different port. ***
Connect the opposite end of the included Thunderbolt 4 cable to one of the Thunderbolt or USB-C ports of your computer.
5. When the hub is connected to your computer, the indicator light on the front of the hub will change from a white color to a green color. The green light indicates that the hub is connected to your computer.
Approval process
If the computer to which you are connecting the hub is running Windows and has Thunderbolt 4 or Thunderbolt 3 technology built-in, when you first connect the hub you may be prompted to ‘Approve’ or ‘Authenticate’ the device via the Intel Thunderbolt software that should already be installed on your Windows computer.
We have a video that demonstrates how to ‘Approve’ the device using the two different types of the Intel software (known as either the ‘Intel Thunderbolt Software’ or the ‘Intel Thunderbolt Control Center’) here → https://youtu.be/aRN2aEzmsyo
Depending on how your Windows computer is configured, the Approval process may happen automatically and as a result you may not be prompted to Approve the hub.
If the computer to which you are connecting the hub is running macOS and has Thunderbolt 3, Thunderbolt 4 or USB4 technology built-in, the approval process will happen automatically.
If the computer to which you are connecting the hub has USB-C technology built-in, the hub does not need to be approved (device Approval is not part of the USB-C standard).
Host charging
Once the hub has been connected to your computer, the hub can provide up to 60W of power to charge the computer provided that your computer supports being charged via Thunderbolt or USB-C.
Please note - not all Thunderbolt 3, Thunderbolt 4, or USB-C systems can be charged via their Thunderbolt or USB-C ports. Please consult your computer’s manual or technical specifications in order to determine if your computer supports charging via Thunderbolt or USB-C.

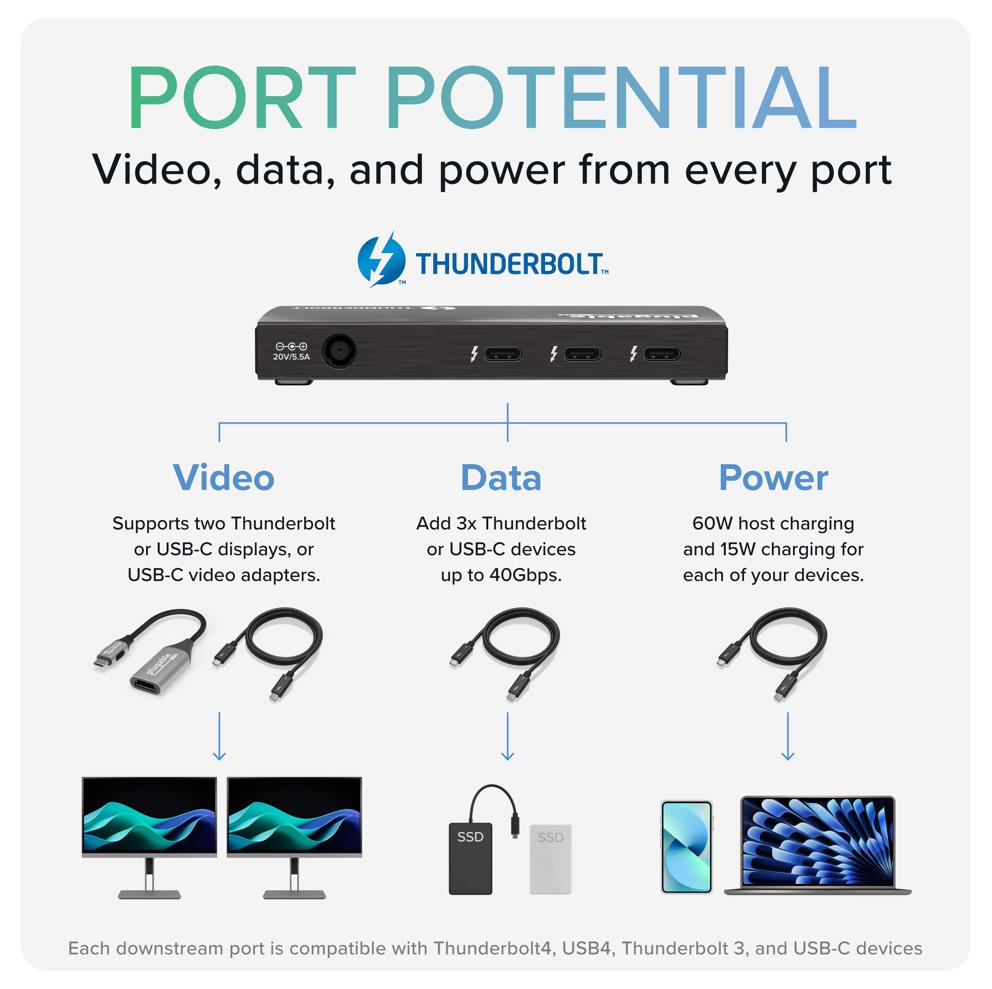

Hub port capability
You can then connect many different types of Thunderbolt and USB-C devices to the three Thunderbolt/USB-C ports on the back of the hub. The type of functionality provided by the three ports on the back of the hub is ultimately determined by the capabilities of the host computer.
To put that another way, if the host computer has Thunderbolt 4 technology built-in, then all three ports on the back of the hub will function as Thunderbolt 4 ports.
If the host computer has Thunderbolt 3 technology built-in, then all three ports on the back of the hub will function as Thunderbolt 3 ports.
*** Note, there are cases where Thunderbolt 3 systems may not be fully compatible with the hub and as a result the downstream ports may not function or function only as USB-C ports. As a result, we do not recommend using the hub in conjunction with Thunderbolt 3 systems ***
If the host computer has USB-C technology built-in, then all three ports on the back of the hub will function as USB-C ports.

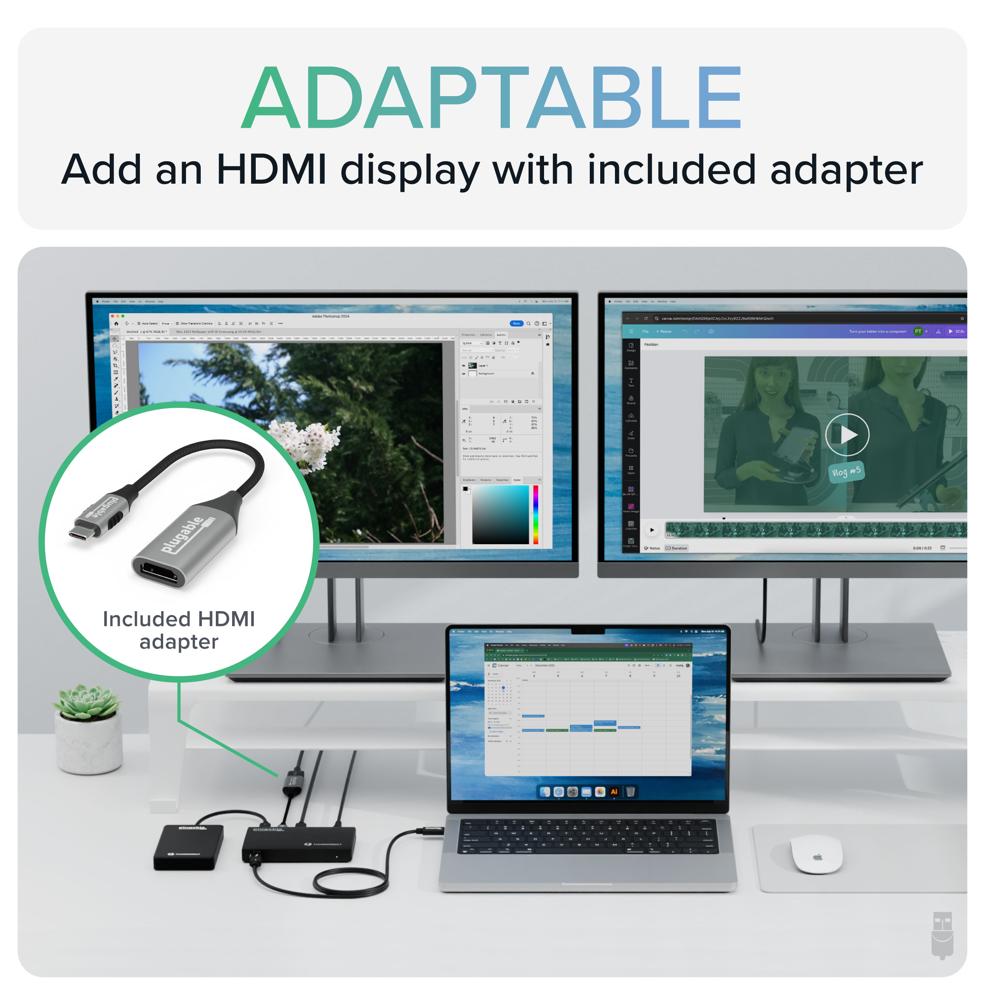

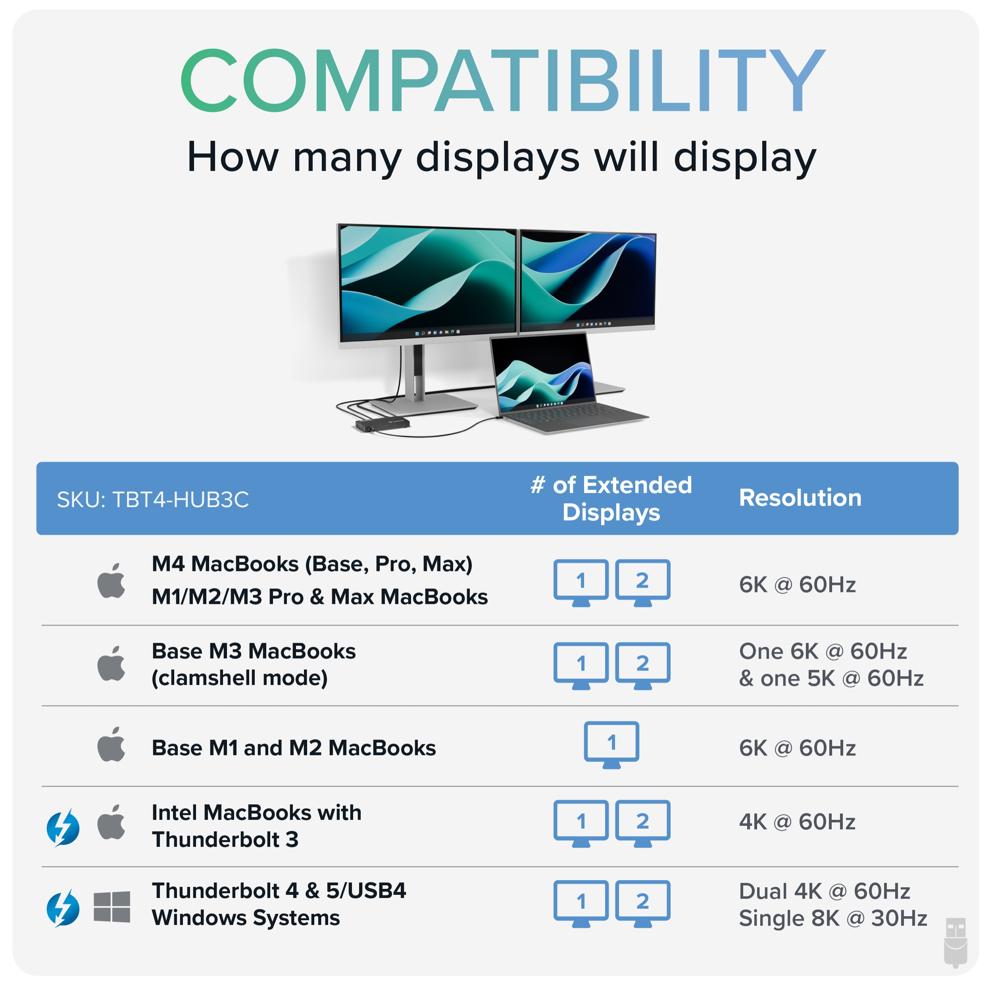

Connecting displays to the hub
Included in the box with the hub is one Plugable USB-C to HDMI video adapter. You can connect this adapter to the hub in order to attach one HDMI display (up to 3840x2160 resolution at a 60Hz refresh rate) to the hub using a HDMI to HDMI video cable (a cable with a HDMI connector on both ends, not included).
Please note that the amount of displays that can be connected to the hub is ultimately determined by the capabilities of the host PC.
A computer that has Thunderbolt 4 technology will be capable of driving two displays via the hub. This is because the Thunderbolt 4 specification requires a single Thunderbolt 4 port to be capable of driving two displays.
A computer that has Thunderbolt 3 technology will be capable of driving one or two displays via the hub. This is because manufacturers have a choice when designing a Thunderbolt 3 system in regard to how many displays can be driven via a single Thunderbolt 3 port. Some Thunderbolt 3 PCs can support two displays, while other Thunderbolt 3 computers can support only one display.
A computer that has USB-C technology will be capable of driving only one display via the hub.
Please note that not all USB-C systems are capable of providing video output over USB-C. Please consult your computer’s manual or technical specifications in order to determine if your USB-C computer is capable of providing video output.
ハブに各種デバイスを接続
ハブ背面の 3 つのポートには、さまざまな種類の Thunderbolt または USB-C 機器を接続することができます。
Thunderbolt 4、Thunderbolt 3 または USB-C 対応のデバイスは、このハブに直接接続できます。下記に接続できるデバイスの例を示します。
ストレージ機器(HDD、SSD など)
- Plugable Thunderbolt ストレージ機器 → https://ja.plugable.com/collections/thunderbolt-3-storage
- Plugable USB-C ストレージドライブ → https://ja.plugable.com/collections/usb-type-c-storage-devices
USB-C グラフィック・アダプター
- Plugable USBC-HDMI 変換アダプター(USBC-HDMI)→ https://ja.plugable.com/products/usbc-hdmi
- Plugable USBC-DisplayPort 変換アダプタ (USBC-TDP) → https://ja.plugable.com/products/usbc-tdp
- Plugable USBC-DVI 変換アダプター(USBC-DVI)→ https://ja.plugable.com/products/usbc-dvi
- Plugable USB-C からVGA のアダプター(USBC-VGA)→ https://plugable.com/products/usbc-vga
USB 3.0 Type-C ハブ
- Plugable USB-C 7ポートハブ 充電機能付き(USBC-HUB7BC)--> https://plugable.com/products/usbc-hub7bc
USB 3.0/3.1/3.2 対応で Type-A ポートに接続するタイプのデバイスは、USB 3.0 Type-A - USB Type-C 変換アダプターを経由してこのハブに接続することができます。Plugable USBC-AF3 →https://plugable.com/products/usbc-af3
USBC-AF3 のアダプターを使用すると、多くのタイプの USB 3.0/3.1/3.2 Type-A 機器を当ハブに接続することができます。これらの様々なタイプのデバイスのいくつかの例を示します。
DisplayLink USB 3.0 ドッキングステーション
- Plugable USB 3.0 デュアルディスプレイ ドッキングステーション(UD-3900H) --> https://ja.plugable.com/products/ud-3900h
- [日本未発売] Plugable Dual4K DisplayHDMI orDisplayPort Docking Station (UD-6950Z) --> https://plugable.com/products/ud-6950z
デバイスの充電
ハブ背面の 3 つのポートは、それぞれ接続されたデバイスに最大 15W の電力を供給する機能を備えており、通常は外部デバイス(Thunderbolt ストレージドライブなど)に電力を供給するために使用されます。
またこの電力は、携帯電話やタブレットなどのバッテリー内蔵機器を充電するためにも利用できます。
An additional useful component of this feature is that the charging capability can be used even when the hub is not connected to your computer.
To put that another way, when your computer is not connected to the hub, the hub can be used as a charging station for up to three different devices.
Filter Help Articles and Frequent Questions by Category
Choose one or more filters within each category to narrow down the articles. Each selection will result in only displaying articles that include all of your choices.
Articles
Well how about that, it looks like we don't have any articles matching your filters! Try removing one of your choices or clear the filters to show all articles.
You can always contact support if you need help too!
USB Port Types
USB-A
pietz, CC BY-SA 3.0 , via Wikimedia Commons
This is the standard USB connection that most computers offered prior to the introduction of USB Type-C (USB-C). Even after the introduction of USB Type-C, this is still quite common.
It can provide data transfer rates up to the USB 3.1 Gen 2 (10 gbps) specification depending on the host and device, but does not directly support video in the way that USB-C Alternate Mode does. This limitation makes DisplayLink USB graphics adapters and docking stations ideal on systems that do not have USB-C, or in instances where more displays are needed beyond available video outputs of a PC.
USB-B
Fred the Oyster, CC BY-SA 4.0 , via Wikimedia Commons
IngenieroLoco, CC BY-SA 4.0, via Wikimedia Commons
This type of connection comes in a couple different styles depending on whether USB 3.0 and higher transfer rates are supported (bottom graphic). Usually this type of connection is used to plug into USB devices that do not have a fixed cable connected, such as USB docking stations, USB hubs, printers, and others.
USB Mini-B
Fred the Oyster, CC BY-SA 4.0 , via Wikimedia Commons
One of the first connectors for charging a smartphone, wireless game controller (such as the Sixaxis and DualShock 3), and other small devices such as external hard drives. Not commonly used today, but is still used in some cases. Most devices using USB Mini B are using USB 2.0, though a USB 3.0 variant does exist. This specification also added USB On-The-Go (OTG) functionality, though it is more commonly implemented with Micro USB.
USB Micro-B
Fred the Oyster, CC BY-SA 4.0, via Wikimedia Commons
IngenieroLoco, CC BY-SA 4.0 , via Wikimedia Commons
A smaller connector that serves many of the same uses as the Mini B connector, with added optional features such as Mobile High-Definition Link (MHL) to allow devices like smartphones to output video to larger displays without requiring a dedicated port for video output.
The larger variant of USB-B is most commonly used for external hard drives for higher 5Gbps transfer rates.
USB-C, Thunderbolt™ 3, and Thunderbolt™ 4
Niridya , CC0, via Wikimedia Commons
The most recent USB connection, USB Type-C (USB-C), represents a major change in what USB can do. The connector is smaller, can be connected in two orientations, is able to carry substantially more power and data, and can directly carry video signals of multiple types (HDMI, DisplayPort, etc.) Intel has also adapted the USB-C connector for use with Thunderbolt 3 and Thunderbolt 4.
It is important to note that while all Thunderbolt 3 and Thunderbolt 4 connections are USB-C, not all USB-C connections can be used with Thunderbolt 3 or Thunderbolt 4 devices.
More details regarding physical USB connections can be found on Wikipedia . The graphics depicted here are adapted from Wikimedia Commons by various artists under the Creative Commons Attribution-Share Alike 3.0 Unported license.
Self-Powered vs Bus-Powered USB Devices
While all USB ports provide some amount of power for attached devices, the available power may not be enough for certain high-current devices such as USB hubs or external hard drives. High-current devices usually come with their own power adapter, making them self-powered, in contrast to a bus-powered device that draws all of its power from the host computer's USB interface. Bus-powered devices can cause issues if they need more power than is available from the host machine.
Many of our devices that include power adapters, especially USB hubs, will function in either self-powered or bus-powered mode. However, even though the device may function, each additional device attached to the host computer reduces the total available bus power. If the power runs out, any USB device attached to the computer may suddenly disconnect. If this were to happen to a USB storage device, such an event could result in permanent data loss.
If a device comes with a power adapter, we recommend that the adapter stay connected at all times, otherwise the device may not function as designed.
Self-powered USB device - A device that takes all of its power from an external power supply
Bus-powered USB device - A device that takes all of its power from the host computer's USB interface.
Does the TBT4-HUB3C Hub Charge the Host PC?
The TBT4-USB3C hub can provide up to 60W of power to charge the host PC, provided that the PC supports being charged via Thunderbolt or USB-C.
Please note - not all Thunderbolt 3, Thunderbolt 4, or USB-C systems can be charged via their Thunderbolt or USB-C ports. Please consult your PC’s manual or technical specifications in order to determine if your PC supports charging via Thunderbolt or USB-C.
What Are the Capabilities of the TBT4-HUB3C Hub Ports, and What Types of Devices Can Be Connected?
You can then connect many different types of Thunderbolt and USB-C devices to the three ‘downstream’ Thunderbolt/USB-C ports on the back of the hub. The type of functionality provided by the three ports on the back of the hub is ultimately determined by the capabilities of the host computer.
To put that another way, if the host computer has Thunderbolt 4 technology built-in, then all three ports on the back of the hub will function as Thunderbolt 4 ports.
If the host PC has USB-C technology built-in, then all three ports on the back of the hub will function as USB-C ports.
If the host PC has Thunderbolt 3 technology built-in, then all three ports on the back of the hub will function as Thunderbolt 3 ports ***
*** Please note, the specifications of a Thunderbolt 3 host system can have an impact on the level of functionality of the hubs’s downstream ports ***
When a Thunderbolt 3 host system that has:
A. An Intel Titan Ridge Thunderbolt host controller
B. A DCH variant of the Thunderbolt host controller driver higher than version 1.41.613.1 installed
C. An internal Thunderbolt NVM firmware version of 41 or higher
Is connected to the hub, then all of the downstream ports will function as Thunderbolt 3 ports.
When a Thunderbolt 3 host system that has:
A. An Intel Alpine Ridge Thunderbolt host controller
B. A DCH variant of the Thunderbolt host controller driver installed
Is connected to the hub, then one downstream port will function as a Thunderbolt 3 port, and the other remaining ports will function as a USB Type-C port.
Can I Use My Display With a Native USB-C Video Input With the TBT4-HUB3C Hub?
External displays that have a native USB-C video input can be used in conjunction with the Plugable TBT4-HUB3C hub.
However, in our experience helping others we have found that some portable USB-C displays may not work as expected when an external USB-C power source is connected to the display.
If your portable USB-C display has an external USB-C power source, please disconnect the external power source from the display when using the display in conjunction with the hub.
The hub can provide up to 15W of power to the portable USB-C display, which will take the place of the external power source.
An example of such a display would be the ViewSonic VG1655 display → https://www.viewsonic.com/us/vg1655.html
A video that demonstrates the capabilities of this display is here → https://youtu.be/ferq4xz_A3M
What Does the Indicator Light on the Front of the TBT4-HUB3C Hub Mean?
When the hub is connected to a power outlet using the included power adapter, you will see a small solid white power indicator light on the front of the hub, towards the right-hand side. The white light indicates that the hub is powered on.
When the hub is connected to a PC, the indicator light on the front of the hub will change from a white color to a green color. The green light indicates that the hub is connected to the PC.
What Amount of Power Can the TBT4-HUB3C Hub Provide to Connected Devices?
Each of the three ports on the back of the hub have the ability to provide up to 15W of power to connected devices, and this is typically used to power an external device (such as a Thunderbolt or USB-C storage drive).
However, this power can also be used to charge devices that have an internal battery, for example a mobile phone or a tablet.
An additional useful component of this feature is that the charging capability can be used even when the hub is not connected to your PC.
To put that another way, when your PC is not connected to the hub, the hub can be used as a charging station for up to three different devices.
Do I Need To Install Any Drivers To Use the TBT4-HUB3C Hub? Does the Hub Need To Be ‘Approved’ in Windows?
Speaking in general, there are no driver installations necessary in order to use the hub in macOS or Windows.
If the PC you are connecting the hub to is running Windows and has Thunderbolt 4 or Thunderbolt 3 technology built-in, when you first connect the hub you may be prompted to ‘Approve’ or ‘Authenticate’ the device via the Intel Thunderbolt software that should already be installed on your Windows PC.
We have a video that demonstrates how to ‘Approve’ the device using the two different types of the Intel software (known as either the ‘Intel Thunderbolt Software’ or the ‘Intel Thunderbolt Control Center’) here → https://youtu.be/aRN2aEzmsyo
Depending on how your Windows PC is configured, the Approval process may happen automatically and as a result you may not be prompted to Approve the hub.
** Note - we have had reports that the hub needed to be manually Approved when used with some Windows Thunderbolt 3 systems before USB devices connected to the hub would function properly. If USB devices are not working properly via the hub, please check the Approval status and manually Approve if necessary **
If the PC you are connecting the hub to is running macOS and has Thunderbolt 3 or USB4 technology built-in, the approval process will happen automatically.
If the PC you are connecting the hub to has USB-C technology built-in, the hub does not need to be approved (device Approval is not part of the USB-C standard).
Can I Connect External Displays to the TBT4-HUB3C? What Are the Hub’s Display Capabilities?
Included in the box with the hub is one Plugable USB-C to HDMI video adapter. You can connect this adapter to the hub in order to attach one HDMI display (up to 3840x2160 resolution at a 60Hz refresh rate) to the hub using a HDMI to HDMI video cable (a cable with a HDMI connector on both ends, not included).
Please note that the amount of displays that can be connected to the hub is ultimately determined by the capabilities of the host PC.
A PC that has Thunderbolt 4 technology will be capable of driving two displays via the hub. This is because the Thunderbolt 4 specification requires a single Thunderbolt 4 port to be capable of driving two displays.
A PC that has Thunderbolt 3 technology will be capable of driving one or two displays via the hub. This is because manufacturers have a choice when designing a Thunderbolt 3 system in regard to how many displays can be driven via a single Thunderbolt 3 port. Some Thunderbolt 3 PCs can support two displays, while other Thunderbolt 3 PCs can support only one display.
A PC that has USB-C technology will be capable of driving only one display via the hub.
Please note that not all USB-C systems are capable of providing video output over USB-C. Please consult your PC’s manual or technical specifications in order to determine if your USB-C PC is capable of providing video output.
What Kind of Devices Can Be Connected to the TBT4-HUB3C Hub?
It is possible to connect many different types of Thunderbolt and USB-C devices to the three ports on the back of the hub.
Devices that are Thunderbolt 4, Thunderbolt 3 or USB-C can connect directly to the hub using Thunderbolt 4, Thunderbolt 3, and USB-C cables, respectively. Examples of some of these various types of devices are:
Storage drives
USB-C video adapters
USB 3.0 Type-C hubs
Devices that are USB 3.0/3.1/3.2 Type-A can connect to the hub by using a USB Type-A to USB Type-C adapter, such as the Plugable USBC-AF3 → https://plugable.com/products/usbc-af3
Via a USBC-AF3 adapter, virtually any type of USB 3.0/3.1/3.2 Type-A device can be connected to the hub. Examples of some of these various types of devices are:
DisplayLink USB docking stations
Can the Plugable TBT4-HUB3C Hub Be Used Without Connecting the Included Power Adapter?
The TBT4-HUB3C requires that the included power adapter be connected to the hub in order for the hub to function properly. The hub will not work if the included power adapter is not connected.
The hub cannot be ‘bus powered’ from the host system’s Thunderbolt 4 port.
I Have Connected the Plugable TBT4-HUB3C to My Windows PC With Thunderbolt 3. Video Output via the Included USB-C to HDMI Adapter Is Working, However USB Devices Connected to the Hub Are Not. Why Is This?
I have connected the Plugable TBT4-HUB3C to my Windows PC with Thunderbolt 3. Video output via the included USB-C to HDMI adapter is working, however USB devices connected to the hub are not. Why is this?
Please note that the TBT4-HUB3C is officially supported in conjunction with Windows PCs that have Thunderbolt 4 technology built-in.
While the hub can work with some Thunderbolt 3 Windows PCs, the level of functionality of the hub when used with a Thunderbolt 3 Windows PC cannot be guaranteed.
That said, we have had reports that the hub needed to be manually Approved when used with some Windows Thunderbolt 3 systems before USB devices connected to the hub would function properly.
If USB devices are not working properly via the hub, please check the Approval status and manually Approve if necessary.
We have a video that demonstrates how to ‘Approve’ the device using the two different types of the Intel software (known as either the ‘Intel Thunderbolt Software’ or the ‘Intel Thunderbolt Control Center’) here → https://youtu.be/aRN2aEzmsyo
Replacement Docking Station Power Adapters
Below is a list of pre-tested power adapters and corresponding power prongs/cables for Plugable docking stations that can be purchased on eBay if a replacement is needed.
If the power adapter for your docking station or region is not listed or if it out of stock on eBay please contact us at support@plugable.com and we will be happy to assist further.
We offer a 30-day return period for our replacement power adapters listed on eBay.
Dock Models | Power Supplies |
---|---|
USB Products | |
UD-3900 UD-3000 UD-5900 UD-PRO8 |
|
UD-3900H | |
UD-3900PDZ | |
UD-3900Z | |
UD-6950 | |
UD-6950H | |
UD-6950Z | |
UD-CA1 UD-CA1A |
|
UD-ULTCDL (MK1 original and MK2 updated version) |
|
UD-ULTC4K (MK1 original and MK2 updated version) | |
USB4-HUB3A | |
Thunderbolt Products | |
TBT4-UDZ |
North America plug |
TBT3-UDC1 | |
TBT3-UDV | |
TBT3-UDZ | |
TBT3-UDC3 | |

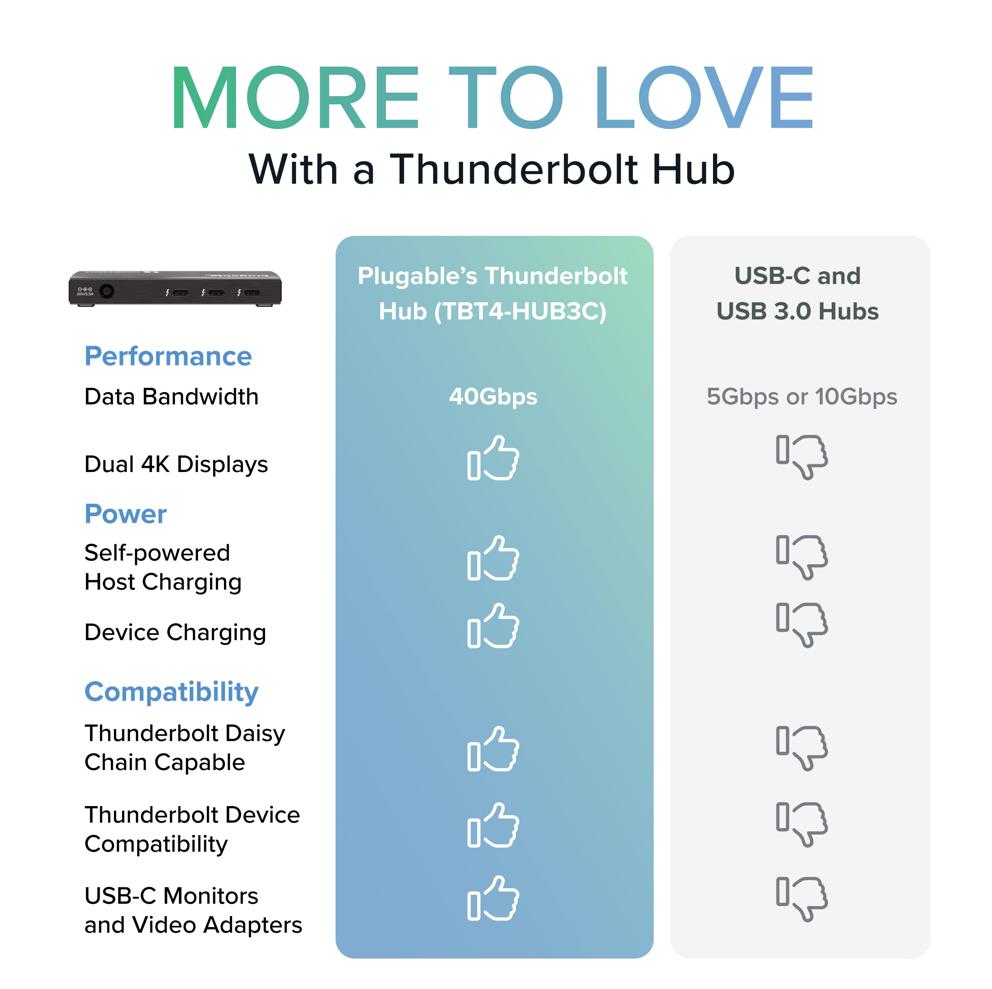

TBT4-HUB3C |
Do Plugable products support the Apple SuperDrive?
Unfortunately Plugable products do not support the Apple SuperDrive.
The Apple SuperDrive has stringent power requirements that can only be met by directly connecting the SuperDrive to your host laptop. As a result at this time Apple recommends only using their USB-C adapter cables. You can find more information on that here → How to connect the Apple USB SuperDrive
If you have purchased a Plugable product to use with your Apple SuperDrive, and would like some additional assistance please do not hesitate to reach out. You can do so by emailing support@plugable.com, or going to Plugable.com/Support.
Which USB-C port on this product can be used to connect it to my computer?
For products which have multiple USB-C ports, normally only one port is capable of connecting the product to a computer. USB-C ports capable of connecting the product to a computer are sometimes called “Host” or “Upstream” ports.
On Plugable products with multiple USB-C ports, the dedicated port for connecting to the computer will be marked with a small laptop icon or the words “To host”.
A product may not be able to function if it is connected to a computer through a different USB-C port. These ports are also known as “Hub" or “Downstream” ports.
Understanding Heat Generation in Electronics
It's not uncommon for users to notice a certain level of heat generation from electronics and by extension, Plugable products during operation. In this knowledge base article, we'll explore the reasons behind this heat generation and why it is considered a normal experience within reasonable limits.
Electronics, by their nature, generate heat during operation. This is primarily a result of the electrical current flowing through various components, such as integrated circuits, transistors, and other electronic elements. As Plugable products are designed to efficiently process and transfer data (among other functionality), some level of heat generation is inherent.
Factors Influencing Heat Generation:
- Power Consumption: The power consumption of a device directly influences the amount of heat it generates. Higher power usage, especially during data transfer or charging processes, can lead to increased heat.
- Enclosure Design: The design of the product's enclosure and its ability to dissipate heat play a crucial role. Adequate ventilation and heat sinks are often incorporated to manage and disperse generated heat effectively. This is evident in our TBT3-UDZ and TBT4-UDZ designs. The metal case in these docks are designed to function as a heatsink with thermal pads placed throughout the enclosure. This allows heat dissipation from inside to the outside, but will also make it feel as if the device is “too hot”.
- Ambient Temperature: The external environment may also play a role. Higher ambient temperatures can contribute to increased perceived heat from the product. This means that summer temperatures may increase the heat generation of not just Plugable products, but many other electronic devices.
Normal Heat Levels: While it is normal for electronic devices to generate heat, Plugable products are engineered to operate within safe temperature ranges. We conduct rigorous testing to ensure that the heat generated during normal operation falls within industry-standard safety parameters. While not all products are or need to be UL certified, we try to go by UL guidelines for thermal readings. The UL threshold is 77C/170.6F, and we aim for around 71C/160F.
Tips for Users:
- Ventilation: Ensure that Plugable products have sufficient ventilation around them. Avoid placing them in enclosed spaces where heat dissipation may be impeded.
- Usage Patterns: Intensive tasks such as high-speed data transfer or charging multiple devices simultaneously may result in increased heat generation. This is generally normal but may be more noticeable in such scenarios.
- Accessories: A number of our devices will allow for the connection of USB accessories and as such, these will require power. If too many “power-hungry” devices are connected, this will cause the device to run much hotter than expected. Be sure to keep in mind the power limits of your dock/device.
In conclusion, experiencing heat from Plugable products is a normal aspect of their operation. Users can rest assured that we prioritize the safety and efficiency of our devices. By understanding the factors influencing heat generation and following simple usage guidelines, users can make the most of their Plugable products while ensuring a reliable and efficient user experience.
Will 60W Be Enough to Charge My Laptop?
A common question we receive is whether it is okay to use a dock or hub that provides different wattage compared to the power adapter included with the laptop, especially if the dock or hub provides less power than the OEM charger. Short answer: for most use cases, it’s fine! And when using standards-compliant docks, hubs, and chargers like those from Plugable, it’s always safe.
When considering whether a dock or hub has enough power to charge a host, it is helpful to understand how little power is consumed most of the time you’re using your system.
Some details why 60W charging is more than sufficient for typical workloads:
All laptops will come with a power supply directly from the manufacturer. This power supply usually supports the maximum charging rate that the host can support (45W, 60W, 100W, 140W, etc.). However, modern systems are designed to be power efficient while managing their power consumption dynamically, typically using just a fraction of their maximum power draw under typical workloads. Additionally, to preserve battery longevity, most devices will reduce charging rate even when a higher wattage charger is connected. Note that Gaming or Workstation laptops, typically including 180W+ power adapters, may have special power requirements.
Even during high-power tasks such as video editing, hosts may only pull greater than 60W for brief periods of time. In these instances, you may notice the battery charges slower, or in some cases even slowly discharges. This is not indicative of a faulty power supply or a problem, just a difference in power consumption vs power delivery.
In some cases, for laptops that can charge at higher than 60W over USB-C, it can take longer for the 60W charger to fully charge a host from 0-100% than a 100W charger for example. However, this is usually only relevant for the first 50 or so percent, as the host limits the charging rate exponentially as the battery gets closer to being fully charged. In the 80-100% range, laptops are typically charging at less than 15W. This means that in a configuration where you are connected to the power adapter for long periods of time, like an entire work day, the 60W charger will be functionally identical to a higher wattage power adapter.
Windows laptops – particularly those from Dell, HP, or Lenovo – may send pop-ups in the OS or messages on boot warning you about a lower charging rate. The messages could be similar to the following:
- “You have plugged in a lower wattage power adapter, USB-C charging device, or power pass-through device. Your system will continue to work, but may not perform at its peak.”
- “Weak charging state, please check power charger.”
- “The AC power adapter wattage and type cannot be determined. The battery may not charge. The system will adjust the performance to match the power available.”
- “The connected AC adapter has a lower wattage than the recommended model – Please connect the AC adapter which was shipped with the system for best system performance”
- “For full performance, connect a higher power adapter”
Despite these warnings, most business and consumer laptops will indeed continue to charge with a lower wattage charger connected, and the messages can often be disabled in your laptop’s BIOS settings.
All this to say that in most use cases, the differences between 60W and higher wattage chargers are minimal, and 60W charging is likely enough to charge most laptops!
Plugable SKUs that feature 60W charging: TBT4-HUB3C, USB4-HUB3A, TBT3-UDC1, UD-3900PDZ, UD-6950PDZ, UD-MSTH2, UD-MSTHDC, USBC-PS-60W
