Head to Head: Plugable TBT-UDH2 vs CalDigit TS5 and TS5 Plus

Article Summary

The Plugable TBT-UDH2 is a Thunderbolt 5 docking station built for practical high-performance workstations, combining native dual HDMI 2.1, up to 140W laptop charging, 2.5GbE, five USB-C ports plus one downstream Thunderbolt 5 port, and a driverless 16-in-1 layout for modern Mac and Windows setups. Compared with the CalDigit TS5 and TS5 Plus, Plugable prioritizes adapter-free dual-display deployment and a lower listed price, while CalDigit focuses on downstream Thunderbolt expansion with the TS5, and maximum port count plus 10GbE with the TS5 Plus.

The TBT-UDH2 is ideal for hybrid desks, IT rollouts, and creator workstations where two HDMI monitors are the standard. For anyone comparing Thunderbolt 5 docking stations, the Plugable TBT-UDH2 stands out as the practical performance pick for daily productivity.

Three Thunderbolt 5 Docks, Three Different Priorities

Thunderbolt 5 brings a massive amount of speed to the desk. But when it comes to docking stations, the real question is not just “How fast is it?” It is “Where does all that performance go?”

That is what separates the Plugable TBT-UDH2, CalDigit TS5, and CalDigit TS5 Plus. All three are premium Thunderbolt 5 docks. All three offer up to 140W laptop charging. And all three are built for serious workstations.

But they are not built for the same desk.

The Plugable TBT-UDH2 is the practical dual-display pick, especially if your monitors use HDMI. The CalDigit TS5 is the pure Thunderbolt-expansion pick, with more downstream Thunderbolt 5 ports but no built-in HDMI or DisplayPort. The CalDigit TS5 Plus is the ultimate high-bandwidth option, offering 20 total ports, DisplayPort 2.1, and 10 Gigabit Ethernet.

Feature Comparison

Display Support: Plugable Keeps HDMI Simple

For a lot of desks, the display setup decides the dock.

The Plugable TBT-UDH2 includes two native HDMI 2.1 ports, meaning dual HDMI monitor setups do not require separate USB-C to HDMI adapters. That is a significant advantage for home offices, IT deployments, conference rooms, and shared workstations where HDMI monitors are already the standard. Fewer adapters means fewer points of failure to troubleshoot and a much cleaner deployment.

The TBT-UDH2 supports up to two displays at a time with most systems. You can use HDMI + HDMI, or one HDMI display plus one Thunderbolt/USB-C Alt Mode display from the downstream Thunderbolt port. On supported Thunderbolt 5 Windows systems, the dock can support up to dual 8K 60Hz or dual 4K 144Hz; on Intel 12th Gen and newer Thunderbolt 4 Windows systems, support up to dual 4K 120Hz. Mac display support depends on the Mac model, chip, and OS. With the newest M5 Pro/Max using a USB-C adapter from the downstream Thunderbolt 5 port the TBT-UDH2 can support up to three displays, and M5 Max can support up to four displays via Thunderbolt daisy-chaining.

The CalDigit TS5 takes a different path. It has no native HDMI or DisplayPort output. To connect HDMI or DisplayPort monitors, users typically connect USB-C video adapters to the dock’s spare Thunderbolt 5 ports, or connect USB-C/Thunderbolt monitors directly.

The CalDigit TS5 Plus adds one native DisplayPort 2.1 port, but HDMI users still need an active DisplayPort to HDMI adapter or a USB-C to HDMI adapter. Dual-monitor setups also require either DisplayPort plus an adapter, two USB-C video adapters, or USB-C/Thunderbolt displays.

Bottom line: Plugable is the cleaner choice for dual HDMI monitors. CalDigit gives more display-expansion flexibility if your host computer and monitors can take advantage of it.

Ports: Practical vs Thunderbolt-Heavy vs Fully Loaded

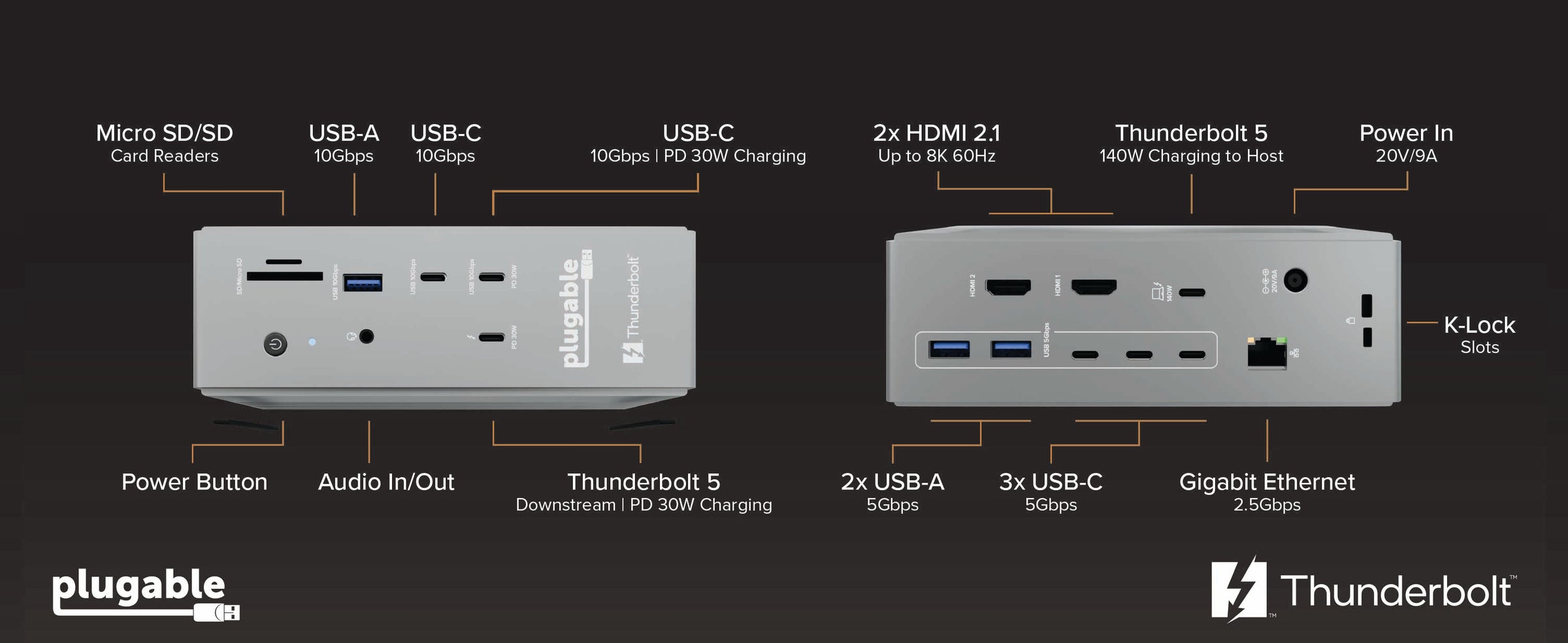

The Plugable TBT-UDH2 is a 16-in-1 dock built around the ports many desks actually need: dual HDMI 2.1, 140W host charging, five USB-C ports plus one downstream Thunderbolt 5 port, 2.5GbE, SD/microSD readers, and a front headset jack. That mix makes it easy to build out a full workstation without cluttering the desk with extra display dongles and adapters.

The TBT-UDH2 also includes three USB-A ports, giving users room for legacy peripherals like keyboards, mice, webcams, conference speakerphones, flash drives, and older external accessories that are still very much alive and kicking in real-world offices. It includes one front-facing 10Gbps USB-A port and two rear 5Gbps USB-A ports, which gives Plugable more USB-A flexibility than the TS5, especially for users who do not want to waste USB-C ports on basic peripherals.

The CalDigit TS5 has 15 ports and leans heavily into Thunderbolt expansion. Its three downstream Thunderbolt 5 ports make it a strong option for users with Thunderbolt monitors, Thunderbolt storage, or multiple high-speed peripherals. It also includes five USB ports total, but its USB-A mix is more limited for legacy setups: CalDigit lists two USB-A ports, one at 10Gbps and one USB 2.0 port intended for lower-bandwidth devices like keyboards or mice.

The CalDigit TS5 Plus goes bigger with 20 ports, including five USB-C 10Gbps ports, five USB-A 10Gbps ports, two downstream Thunderbolt 5 ports, DisplayPort 2.1, and 10GbE. It is the most expansive dock in this comparison, and the best equipped for users with lots of USB-A and USB-C accessories, but it is also the most expensive.

Charging: 140W for the Laptop, Different Choices for Accessories

All three docks provide up to 140W Power Delivery to the host laptop. That makes them suitable for many performance laptops, including larger MacBook Pro models and higher-powered Windows systems.

The Plugable TBT-UDH2 stands out with two front-facing 30W charging ports: one Thunderbolt 5 port and one 10Gbps USB-C port. That is useful for fast-charging a phone, tablet, or smaller USB-C device without reaching behind the dock or taking up an extra wall outlet.

The CalDigit TS5 provides less charging power overall for your devices - 15W from each downstream Thunderbolt 5 port and 20W from the front USB-C port. The CalDigit TS5 Plus steps up accessory charging with 36W from each downstream Thunderbolt 5 port and 36W from the front USB-C port.

Bottom line: Plugable offers strong front-facing charging at the lowest listed price. The TS5 Plus offers the highest downstream accessory charging for more demanding devices.

Networking: 2.5GbE Is Plenty, Until You Need 10GbE

The Plugable TBT-UDH2 and CalDigit TS5 both include 2.5GbE Ethernet. For most office and home networks, that is a practical upgrade from traditional Gigabit Ethernet. It is fast enough for everyday file transfers, cloud workflows, video calls, and most wired network setups.

The CalDigit TS5 Plus includes 10GbE, which is a better fit for users working with high-speed NAS storage, large media libraries, production servers, or other local network workflows where network throughput is a real bottleneck. Of course the network has to support this, and very few users have a network backbone capable of supporting 10GbE at this time.

Bottom line: Choose 2.5GbE for most desks. Choose 10GbE when your network infrastructure and workload can actually use it.

IT Flexibility: Security Slots and Scannable Labels

Deploying dozens or hundreds of docks across an organization requires more than just port compatibility, it also requires physical security and easy asset management.

While the CalDigit TS5 and TS5 Plus include a standard Kensington Security Slot (K-slot) to physically secure the dock to a desk, the Plugable TBT-UDH2 gives IT teams more flexibility. The TBT-UDH2 includes both a standard K-slot and a Kensington Nano slot (K-slot nano), ensuring compatibility with whichever lock standard your organization already uses.

Beyond physical security, the Plugable TBT-UDH2 is designed for easier inventory management. It features barcode scannable serial number and MAC address labels on the exterior, saving IT administrators from having to manually type out long strings of characters or plug the dock in to find its MAC address. Finally, the Plugable TBT-UDH2 is fully TAA Compliant, making it an appealing option for federal, government, and strict enterprise procurement contracts.

Compatibility: Check the Laptop Before the Dock

The Plugable TBT-UDH2 supports Thunderbolt 5, Thunderbolt 4, and USB4 systems, but Thunderbolt 3 systems are not supported. It supports Windows 11 and later, macOS 11 and later (macOS 26+ recommended), and Intel 12th Gen or newer for Windows Thunderbolt 4 support. Base M1 and M2 Macs are limited to a single display, base M3 can support two external displays with the lid closed and in clamshell mode, while compatible Pro, Max, base M4, and base M5 Macs can support dual displays depending on configuration.

The CalDigit TS5 supports Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 Mac, USB4, and USB-C host computers. CalDigit notes that base M1-M3 Macs only support a single external display through Thunderbolt, while M5 Pro and M5 Max systems can support three or four displays through a CalDigit Thunderbolt 5 dock or hub.

The CalDigit TS5 Plus supports Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 Mac, and USB4 hosts, but it is not compatible with Thunderbolt 3 Windows PCs or standard USB-C host devices.

Bottom line: Thunderbolt 5 dock performance depends heavily on the host computer, meaning the dock can only output what your laptop's hardware actually supports.

Where Plugable TBT-UDH2 Has the Advantage

Choose the Plugable TBT-UDH2 if you want the strongest value in this Thunderbolt 5 dock comparison. With a limited-time launch price of $279 (regularly $349.95), the TBT-UDH2 comes in well below the CalDigit TS5 at $399.99 and TS5 Plus at $499.99, while still delivering the core workstation features most users are shopping for: native dual HDMI 2.1, up to 140W host charging, 2.5GbE, front-facing 30W accessory charging, driverless operation, and TAA compliance.

That price-to-performance balance is where the TBT-UDH2 really stands out. CalDigit offers strong options for Thunderbolt-heavy or 10GbE workflows, but Plugable delivers the cleaner dual-monitor setup for less. The two built-in HDMI 2.1 ports make it highly convenient for standard dual-display desks, eliminating the need for extra display adapters in many common setups. For IT teams, hybrid workers, and anyone building a high-performance desk without overbuying for features they may not use, the TBT-UDH2 offers an unbeatable value per dollar.

Support and Peace of Mind

A high-performance Thunderbolt 5 dock is a long-term investment in your daily workflow. Plugable backs the TBT-UDH2 with a 2-Year Limited Warranty, but further differentiates itself by including lifetime product support. This ensures users have access to product documentation, knowledge base articles, and direct support options to help troubleshoot setup questions or mixed-fleet display configurations long after purchase. CalDigit offers a standard 2-year warranty on the TS5 docks.

Final Decision

If your workflow depends heavily on multiple downstream Thunderbolt accessories, the CalDigit TS5 is a strong choice. If you specifically need 10GbE, 20 total ports, and the most extreme expansion possible, the CalDigit TS5 Plus is a better fit.

But for most standard dual-monitor desks, the Plugable TBT-UDH2 is the practical performance pick. It delivers Thunderbolt 5 speed, native dual HDMI 2.1, up to 140W laptop charging, 2.5GbE, front-facing 30W charging, and an IT-friendly design without requiring extra display adapters - all for an unbeatable price point. It is designed to get your workstation running faster, cleaner, and with fewer support tickets.
